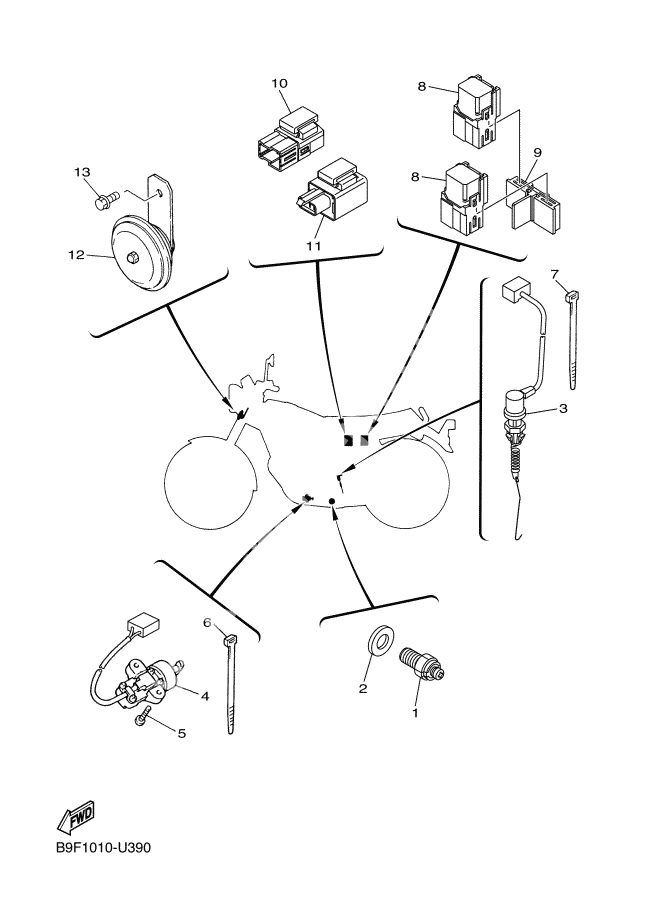

ELECTRICAL
ELECTRICAL
MAIN SW. IMMOBILIZER KIT (Ref #1)
1
Part #3HT-W8250-30
. ENGINE CONTROL UNIT ASSY (Ref #2)
2
Part #B9F-8591A-00
. IMMOBILIZER. UNIT COMP. (Ref #3)
3
Part #5UX-8255P-00
. SCREW (Ref #4)
4
Part #5SL-82113-01
BLANK KEY (Ref #5)
5
Part #5SL-82511-08
Plug Cap Assy (Ref #6)
6
Part #3NS-82370-00
サーモユニツト (Ref #7)
7
Part #4P9-83591-00
Washer, Plate (Ref #8)
8
Part #90201-10128
Bracket (Ref #9)
9
Part #B9F-81948-00
Band, battery (Ref #10)
10
Part #1RC-82137-00
Bolt, Flange (Ref #11)
11
Part #95827-06010
Bolt, Flange (Ref #11)
11
Part #95827-06010
Bolt, Flange (Ref #11)
11
Part #95827-06010
Bolt, Flange (Ref #11)
11
Part #95827-06010
Damper, Plate 1 (Ref #12)
12
Part #B9F-2414H-00
BATTERY ASSY (GT4B-5 12V-2.5AH (Ref #13)
13
Part #90793-26101
Box, Battery 1 (Ref #14)
14
Part #3HT-8212B-00
Damper, Plate (Ref #15)
15
Part #90520-04005
Damper, Muffler 2 (Ref #16)
16
Part #7NJ-14757-00
Damper, Muffler 2 (Ref #16)
16
Part #7NJ-14757-00
Damper, Muffler 2 (Ref #16)
16
Part #7NJ-14757-00
Damper, Muffler 2 (Ref #16)
16
Part #7NJ-14757-00
DAMPER (Ref #17)
17
Part #5TG-84553-00
DAMPER (Ref #17)
17
Part #5TG-84553-00
DAMPER (Ref #17)
17
Part #5TG-84553-00
DAMPER (Ref #17)
17
Part #5TG-84553-00
Grommet (Ref #18)
18
Part #90480-16004
Collar (Ref #19)
19
Part #90387-067K8
Bolt, Flange (Ref #20)
20
Part #90105-06169
Washer, Plate (Ref #21)
21
Part #90201-06380
Clamp (Ref #24)
24
Part #90464-13185
Bolt, With Washer (Ref #25)
25
Part #90119-06138
GROMMET (Ref #26)
26
Part #90480-14003
Collar (Ref #27)
27
Part #90387-085W0
Band, Battery (Ref #30)
30
Part #7H3-82131-00
. FUSE (30A-BL) (Ref #31)
31
Part #1AE-82151-00
BOLT (Ref #32)
32
Part #90109-08195
BAND (Ref #33)
33
Part #1UA-82591-00
Wire Harness Assy (Ref #34)
34
Part #B9F-82590-00
Wire Harness Assy (Ref #34)
34
Part #B9F-82590-00
Wire Harness Assy (Ref #34)
34
Part #B9F-82590-00
Wire Harness Assy (Ref #34)
34
Part #B9F-82590-00
. DIODE ASSY (Ref #35)
35
Part #3XV-81980-00
. FUSE (15A-BL) (Ref #37)
37
Part #5JJ-82151-10
. FUSE (10A-BL) (Ref #38)
38
Part #5JJ-82151-30
. FUSE (7.5A-BL) (Ref #39)
39
Part #5JJ-82151-00
. DIODE ASSY (Ref #40)
40
Part #3WP-81980-00
DAMPER (Ref #41)
41
Part #B9F-82157-00
IGNITION COIL ASSY (Ref #42)
42
Part #3D8-82310-10
Bolt (Ref #43)
43
Part #91380-06020
Damper, Ignition Coil (Ref #44)
44
Part #4BR-82317-00
CLAMP (Ref #45)
45
Part #1RC-82544-00
Rectifier & Regulator Assy (Ref #46)
46
Part #4XY-81960-00
NUT, SELF U-FLANGE (Ref #47)
47
Part #95607-06200
Stay, rectifier (Ref #48)
48
Part #3HT-8711E-10
Bolt, Flange (Ref #49)
49
Part #95827-06025
GROMMET (Ref #50)
50
Part #90480-14229
Collar (Ref #52)
52
Part #90387-06158
Washer, Plate (Ref #53)
53
Part #90201-06063
Sensor, Lean Angle (Ref #54)
54
Part #3HT-82576-00
PROTECTER, WIRE HARNESS (Ref #55)
55
Part #2D1-82589-00
Band (Ref #56)
56
Part #12R-82591-00
Hose (L130) (Ref #57)
57
Part #90445-07036
Clamp (Ref #58)
58
Part #90464-17002
Seal 1 (Ref #59)
59
Part #5S7-28428-00
CLAMP (Ref #60)
60
Part #90464-16001
Clamp (Ref #61)
61
Part #90464-35132
CLAMP (Ref #62)
62
Part #90465-10098
