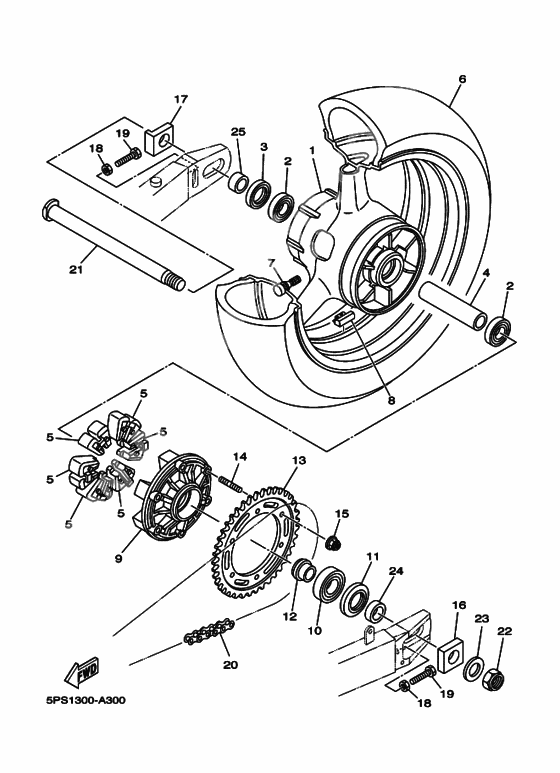

Rear wheel complete assy
Rear wheel complete assy
Cast Wheel, Rear (Ref #1)
1
Part #5PS-25338-00-98
Подшипник (Ref #2)
2
Part #93306-07806-00
Подшипник (Ref #2)
2
Part #93306-07806-00
Подшипник (Ref #2)
2
Part #93306-07806-00
Подшипник (Ref #2)
2
Part #93306-07806-00
Oil seal (Ref #3)
3
Part #93106-35042-00
Шайба, подшипник (Ref #4)
4
Part #5PS-25317-00-00
Tire (160/60Zr17 M/c(69W)) (Ref #6)
6
Part #94116-17008-00
Valve, Rim (Tr413) (Ref #7)
7
Part #93900-00030-00
Балансир колеса (Ref #8)
8
Part #5MT-25398-10-00
Балансир колеса (Ref #8)
8
Part #5MT-25398-00-00
Балансир колеса (Ref #8)
8
Part #5MT-25398-20-00
Clutch, Hub (Ref #9)
9
Part #5PS-25366-00-00
BEARING (Ref #10)
10
Part #93306-20640-00
Сальник (Ref #11)
11
Part #93106-40041-00
Втулка (Ref #12)
12
Part #4FM-25377-00-00
Sprocket, Driven (42T) (Ref #13)
13
Part #5PS-25442-00-00
BOLT, STUD (Ref #14)
14
Part #90116-10575-00
Nut, U Flange (Ref #15)
15
Part #956-07102-00-00
Натяжитель цепи 1 (Ref #16)
16
Part #5EB-25388-00-00
Натяжитель цепи 2 (Ref #17)
17
Part #5PS-25389-00-00
Nut, flange (Ref #18)
18
Part #95337-08600-00
Nut, flange (Ref #18)
18
Part #95337-08600-00
Nut, flange (Ref #18)
18
Part #95337-08600-00
Nut, flange (Ref #18)
18
Part #95337-08600-00
Bolt (L=55 P=1.25) (Ref #19)
19
Part #90101-08777-00
Bolt (L=55 P=1.25) (Ref #19)
19
Part #90101-08777-00
Bolt (L=55 P=1.25) (Ref #19)
19
Part #90101-08777-00
Bolt (L=55 P=1.25) (Ref #19)
19
Part #90101-08777-00
Цепь (Ref #20)
20
Part #94581-46118-00
Ось колеса (Ref #21)
21
Part #4FM-25381-20-00
Гайка самоконтрящаяся (Ref #22)
22
Part #90185-24007-00
Шайба (Ref #23)
23
Part #90201-25020-00
Collar, Wheel (Ref #24)
24
Part #5PS-25376-00-00
Collar, Wheel (Ref #25)
25
Part #5EB-25377-00-00
-
1990101-08766-00
Bolt (L=55 P=1.25)
2Replaced by 90101-08777-00 Доступно: Нет в наличии
