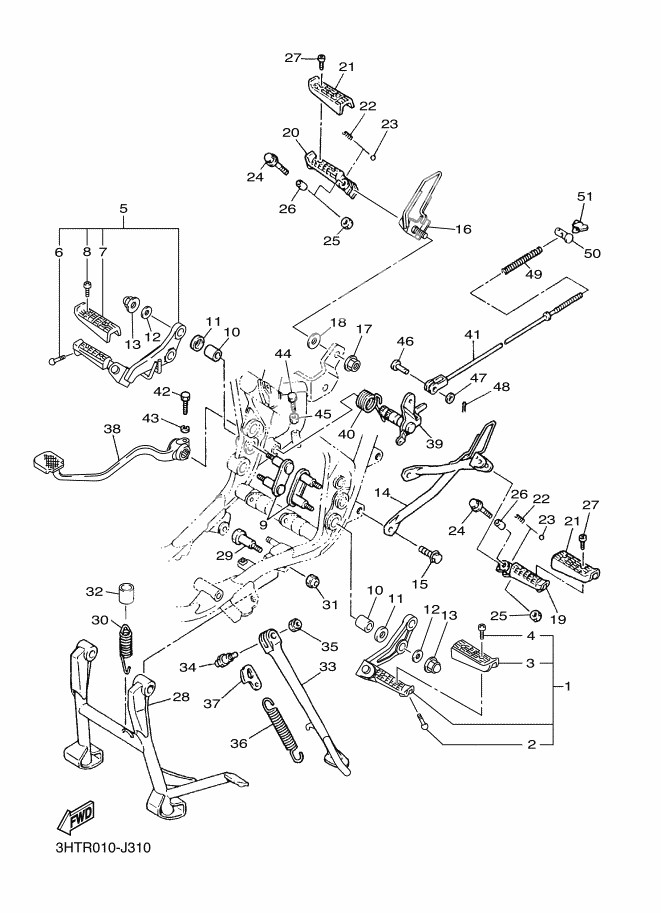

STAND FOOTREST
STAND FOOTREST
Front Footrest Assy (Left) (Ref #1)
1
Part #3GW-27410-20
. BOLT (Ref #2)
2
Part #90109-08018
. COVER, FOOTREST (Ref #3)
3
Part #1JK-27413-00
Screw, Pan Head (Ref #4)
4
Part #90157-05079
Front Footrest Assy (Right) (Ref #5)
5
Part #3GW-27420-20
Bolt, Footrest (Ref #9)
9
Part #2J2-27416-10
Damper, Footrest (Ref #10)
10
Part #2J2-27414-01
Damper, Footrest (Ref #10)
10
Part #2J2-27414-01
Damper, Footrest (Ref #10)
10
Part #2J2-27414-01
Damper, Footrest (Ref #10)
10
Part #2J2-27414-01
Washer (Ref #11)
11
Part #90209-12102
Washer (Ref #11)
11
Part #90209-12102
Washer (Ref #11)
11
Part #90209-12102
Washer (Ref #11)
11
Part #90209-12102
Washer, Plate (Ref #12)
12
Part #90201-08043
Washer, Plate (Ref #12)
12
Part #90201-08043
Washer, Plate (Ref #12)
12
Part #90201-08043
Washer, Plate (Ref #12)
12
Part #90201-08043
Nut, Crown (Ref #13)
13
Part #90176-08068
Nut, Crown (Ref #13)
13
Part #90176-08068
Nut, Crown (Ref #13)
13
Part #90176-08068
Nut, Crown (Ref #13)
13
Part #90176-08068
BRACKET 1 (0033,YB) (Ref #14)
14
Part #3GW-27432-00-33
Bolt, Flange (Ref #15)
15
Part #95807-10020
Bracket 2 (Ref #16)
16
Part #3HT-27442-00
Nut, Self-Locking (Ref #17)
17
Part #95607-12200
Washer, Plate (Ref #18)
18
Part #90201-12027
Footrest, Rear 1 (Ref #19)
19
Part #4BR-27431-01
Footrest, Rear 2 (Ref #20)
20
Part #4BR-27441-01
Cover, Footrest (Ref #21)
21
Part #2GH-27413-00
Cover, Footrest (Ref #21)
21
Part #2GH-27413-00
Cover, Footrest (Ref #21)
21
Part #2GH-27413-00
Cover, Footrest (Ref #21)
21
Part #2GH-27413-00
Spring, Compression (Ref #22)
22
Part #90501-15001
Spring, Compression (Ref #22)
22
Part #90501-15001
Spring, Compression (Ref #22)
22
Part #90501-15001
Spring, Compression (Ref #22)
22
Part #90501-15001
BALL (Ref #23)
23
Part #93501-04011
BALL (Ref #23)
23
Part #93501-04011
BALL (Ref #23)
23
Part #93501-04011
BALL (Ref #23)
23
Part #93501-04011
Bolt, Flange (Ref #24)
24
Part #95027-06035
Bolt, Flange (Ref #24)
24
Part #95027-06035
Bolt, Flange (Ref #24)
24
Part #95027-06035
Bolt, Flange (Ref #24)
24
Part #95027-06035
Nut, Self-Locking (Ref #25)
25
Part #95607-06100
Nut, Self-Locking (Ref #25)
25
Part #95607-06100
Nut, Self-Locking (Ref #25)
25
Part #95607-06100
Nut, Self-Locking (Ref #25)
25
Part #95607-06100
. COLLAR (Ref #26)
26
Part #90387-064H8
. COLLAR (Ref #26)
26
Part #90387-064H8
. COLLAR (Ref #26)
26
Part #90387-064H8
. COLLAR (Ref #26)
26
Part #90387-064H8
. SCREW, PAN HEAD (Ref #27)
27
Part #98507-05010
. SCREW, PAN HEAD (Ref #27)
27
Part #98507-05010
. SCREW, PAN HEAD (Ref #27)
27
Part #98507-05010
. SCREW, PAN HEAD (Ref #27)
27
Part #98507-05010
Stand, Main (Ref #28)
28
Part #2J2-27111-00
Bolt (Ref #29)
29
Part #90109-102G9
Spring, Tension (Ref #30)
30
Part #90506-40175
Nut, Self-Locking (Ref #31)
31
Part #90185-10037
Hose (L35) (Ref #32)
32
Part #90445-307K7
Stand, Side (Ref #33)
33
Part #3HT-27311-00
Bolt (Ref #34)
34
Part #90109-10473
Spring, Tension (Ref #36)
36
Part #90506-29180
Link, Side Stand (Ref #37)
37
Part #3VD-27315-00
Pedal, Brake (Ref #38)
38
Part #3HT-27211-00
Shaft, brake pedal (Ref #39)
39
Part #3H0-27212-00
Spring, Torsion (Ref #40)
40
Part #90508-40381
Rod, brake (Ref #41)
41
Part #3H0-27231-00
BOLT (Ref #42)
42
Part #90109-06468
Washer, Spring (Ref #43)
43
Part #92907-06100
BOLT (Ref #44)
44
Part #97007-06020
NUT (Ref #45)
45
Part #95307-06700
Pin, Clevis (Ref #46)
46
Part #90240-08067
ワツシヤ, プレート (Ref #47)
47
Part #90201-08083
Pin, Cotter (Ref #48)
48
Part #91401-20012
Spring, Compression (Ref #49)
49
Part #90501-10245
PIN (Ref #50)
50
Part #90249-12008
Nut, Wing (Ref #51)
51
Part #90175-06013
