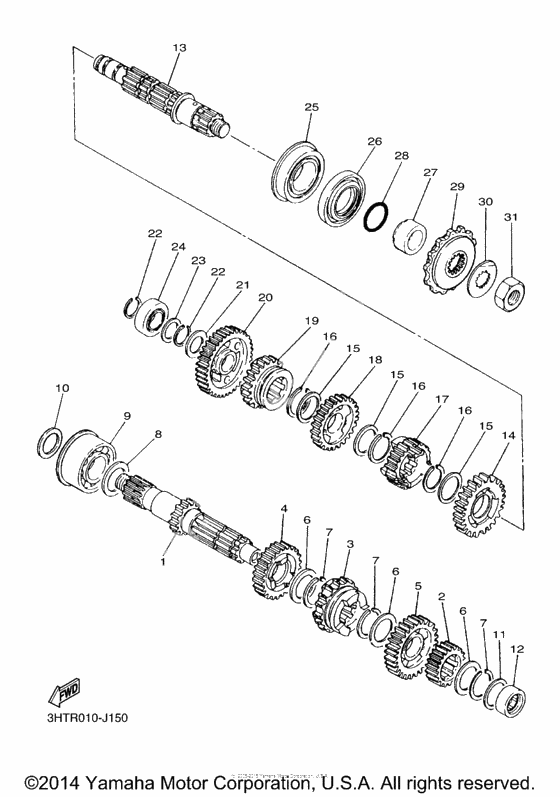

Трансмиссия
Трансмиссия
Axle, Main (14T) (Ref #1)
1
Part #3HT-17411-00-00
Шестерня, 2-ая (Ref #2)
2
Part #583-17121-00-00
Gear, 3Rd Pinion (21T) (Ref #3)
3
Part #3GW-17131-00-00
Шестерня, 4-ая (Ref #4)
4
Part #583-17141-00-00
Gear, 5Th Pinion (27T) (Ref #5)
5
Part #3GW-17151-00-00
Фиксатор (Ref #8)
8
Part #168-17428-01-05
Bearing (Ref #9)
9
Part #93306-20546-00
Шайба (Ref #10)
10
Part #90201-252A4-00
Washer, Plate (Ref #11)
11
Part #90201-20266-00
Подшипник (Ref #12)
12
Part #93311-42077-00
DRIVE AXLE ASSY (Ref #13)
13
Part #3HT-17402-R0-00
Шестерня, 2-ого колеса) (Ref #14)
14
Part #583-17221-00-00
Gear, 5Th Wheel (21T) (Ref #17)
17
Part #3GW-17251-00-00
Gear, 3Rd Wheel (25T) (Ref #18)
18
Part #3GW-17231-00-00
Шестерня, 4-го колеса (Ref #19)
19
Part #583-17241-00-00
Шестерня, первого колеса (Ref #20)
20
Part #583-17211-00-00
Шайба (Ref #21)
21
Part #90201-20278-00
Circlip (Ref #22)
22
Part #93410-20038-00
Circlip (Ref #22)
22
Part #93410-20038-00
Circlip (Ref #22)
22
Part #93410-20038-00
Circlip (Ref #22)
22
Part #93410-20038-00
Bearing, Cylinder.#13 (Ref #24)
24
Part #93313-32008-00
Bearing (Ref #25)
25
Part #93306-30517-00
Сальник (Ref #26)
26
Part #93102-35469-00
Втулка (Ref #27)
27
Part #90387-250V7-00
Кольцо уплотнительное (Ref #28)
28
Part #93210-22298-00
Sprocket, Drive 19T (Ref #29)
29
Part #3FH-17460-00-00
Шайба контровочная (Ref #30)
30
Part #90215-21256-00
Nut, flange (Ref #31)
31
Part #90179-18003-00
