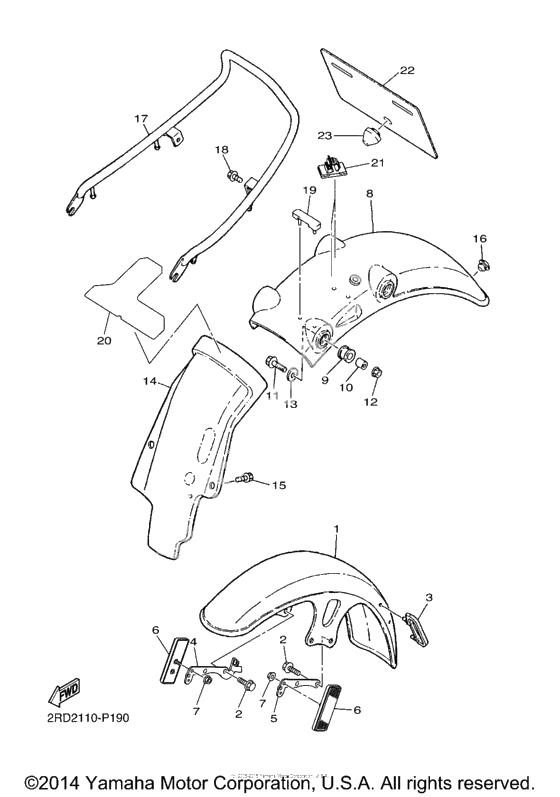

Крыло
Крыло
FRONT FENDER COMP. (Ref #1)
1
Part #1JN-21510-20-93
BOLT (Ref #2)
2
Part #901-0508X-15-00
BOLT (Ref #2)
2
Part #901-0508X-15-00
BOLT (Ref #2)
2
Part #901-0508X-15-00
BOLT (Ref #2)
2
Part #901-0508X-15-00
Держатель кабеля (Ref #2)
2
Part #3Y6-21518-00-00
Держатель кабеля (Ref #2)
2
Part #3Y6-21518-00-00
Держатель кабеля (Ref #2)
2
Part #3Y6-21518-00-00
Держатель кабеля (Ref #2)
2
Part #3Y6-21518-00-00
Holder, Brake Hose (Ref #4)
4
Part #2RD-25887-00-00
Holder, Brake Hose 5 (Ref #5)
5
Part #2RD-2588F-00-00
Катафот (Ref #6)
6
Part #11H-85110-01-00
Катафот (Ref #6)
6
Part #11H-85110-01-00
Катафот (Ref #6)
6
Part #11H-85110-01-00
Катафот (Ref #6)
6
Part #11H-85110-01-00
Nut, flange (Ref #7)
7
Part #95707-05500-00
Nut, flange (Ref #7)
7
Part #95707-05500-00
Nut, flange (Ref #7)
7
Part #95707-05500-00
Nut, flange (Ref #7)
7
Part #95707-05500-00
REAR FENDER COMP. (Ref #8)
8
Part #2J2-21610-11-93
Виброгаситель (Ref #9)
9
Part #168-21639-00-00
Втулка (Ref #10)
10
Part #90387-08258-00
BOLT (Ref #11)
11
Part #95817-08035-00
Nut, flange (Ref #12)
12
Part #90179-08491-00
Шайба (Ref #13)
13
Part #90201-085E6-00
Guard, Mud (Ref #14)
14
Part #2J2-21629-01-00
Screw, With Washer (Ref #15)
15
Part #90119-06152-00
Screw, With Washer (Ref #15)
15
Part #97017-06016-00
PLUG (Ref #16)
16
Part #90338-07043-00
Stay, Rear (Ref #17)
17
Part #3GW-21645-00-00
Clamp, wire (Ref #18)
18
Part #3HT-21637-00-00
シ−ル (Ref #20)
20
Part #3HT-21669-00-00
CLAMP (Ref #21)
21
Part #90464-62085-00
Plate, Number Support (Ref #22)
22
Part #2RD-28189-00-00
Амортизатор (Ref #23)
23
Part #3HT-21649-00-00
-
1590119-06056-00
Screw, With Washer
2Replaced by 97017-06016-00 Доступно: Нет в наличии
