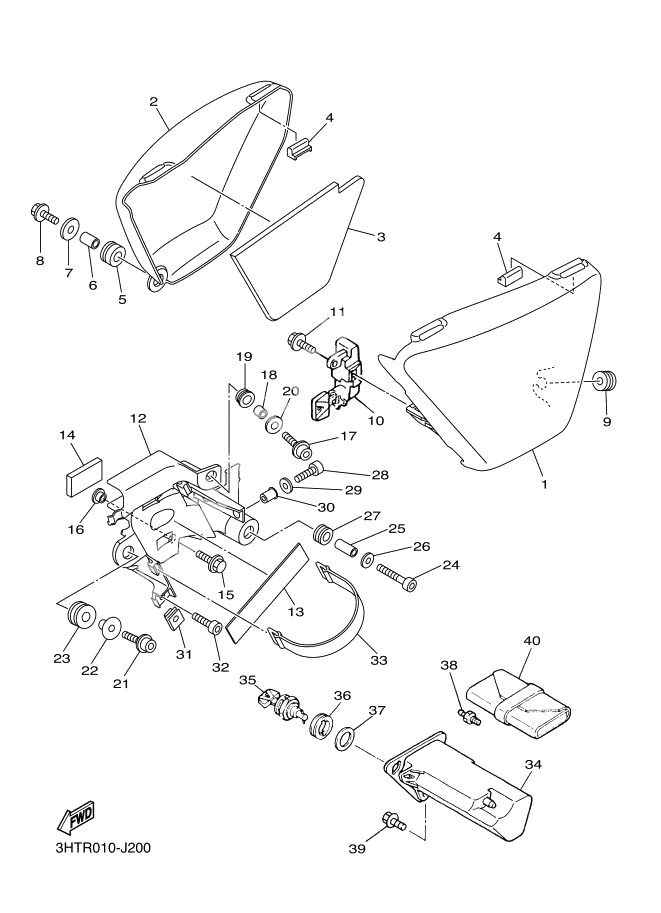

SIDE COVER
SIDE COVER
カバ−,サイド 1 (Ref #1)
1
Part #3HT-21711-01-33
カバ−,サイド 2 (Ref #2)
2
Part #3HT-21721-00-33
DAMPER (Ref #3)
3
Part #3HT-2174Y-00
DAMPER (Ref #4)
4
Part #466-21717-00
DAMPER (Ref #4)
4
Part #466-21717-00
DAMPER (Ref #4)
4
Part #466-21717-00
DAMPER (Ref #4)
4
Part #466-21717-00
Grommet (Ref #5)
5
Part #90480-14105
Collar (Ref #6)
6
Part #90387-07393
Washer, Plate (Ref #7)
7
Part #90201-06380
Bolt, Flange (Ref #8)
8
Part #95807-06030
Grommet (Ref #9)
9
Part #90480-12236
Lock Assy 2 (Ref #10)
10
Part #4R8-21708-01
Bolt, Flange (Ref #11)
11
Part #95807-06014
Box (Ref #12)
12
Part #3HT-2177A-00
Damper, Locating 1 (Ref #13)
13
Part #5PX-21778-00
. DAMPER (Ref #14)
14
Part #1TX-28371-00
Bolt, Flange (Ref #15)
15
Part #95822-06014
Collar (Ref #16)
16
Part #90387-06184
Bolt, Hexagon Socket Head (Ref #17)
17
Part #90110-06164
Collar (Ref #18)
18
Part #90387-063K3
GROMMET (Ref #19)
19
Part #90480-12003
Washer, Plate (Ref #20)
20
Part #90201-06104
Collar (Ref #22)
22
Part #90387-077M3
Grommet (Ref #23)
23
Part #90480-14452
BOLT (Ref #24)
24
Part #91312-06035
Collar (Ref #25)
25
Part #90387-06045
GROMMET (Ref #27)
27
Part #90480-14003
Bolt, Hexagon Socket Head (Ref #28)
28
Part #91312-05020
Washer, Plate (Ref #29)
29
Part #92902-05600
NUT (Ref #30)
30
Part #90179-05633
Nut, Spring (Ref #31)
31
Part #90183-060A1
Bolt, Hexagon Socket Head (Ref #32)
32
Part #91312-06016
Band, Battery (Ref #33)
33
Part #133-82131-00
Box (Ref #34)
34
Part #48U-21248-00
Lock Assy 2 (Ref #35)
35
Part #5A8-21708-00
Grommet (Ref #36)
36
Part #90480-24186
Washer, Plate (T=1.0) (Ref #37)
37
Part #90201-225A4
Nipple, Grease (Ref #38)
38
Part #93700-06004
Bolt, With Washer (Ref #39)
39
Part #90119-06044
Tool kit (Ref #40)
40
Part #3GW-28100-01
