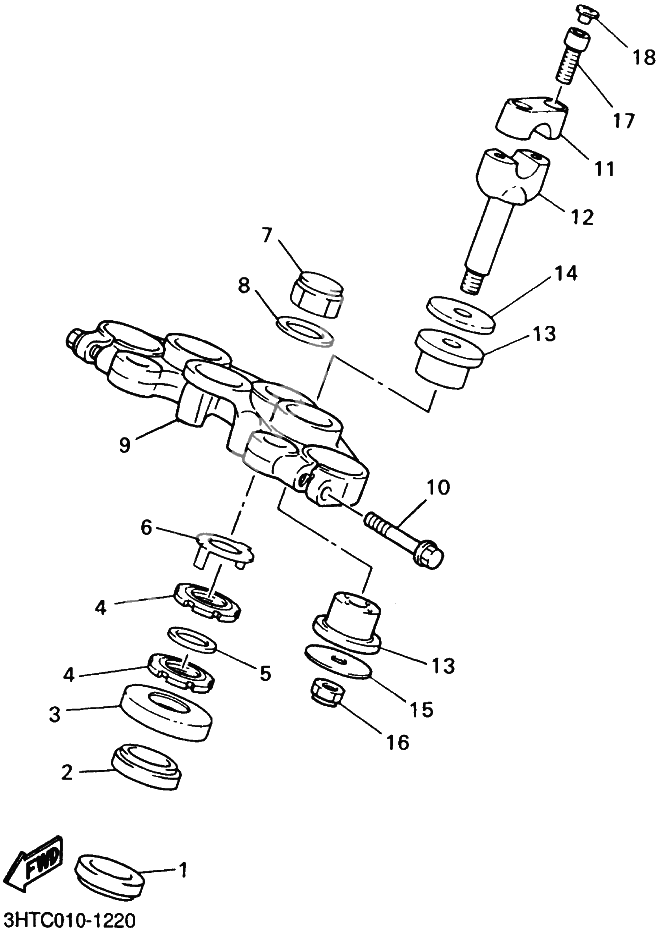

STEERING
STEERING
Bearing (Ref #1)
1
Part #93399-99942
Bearing (Ref #2)
2
Part #93399-99949
Cover, Ball Race 2 (Ref #3)
3
Part #10V-23416-01
NUT (Ref #4)
4
Part #90179-25004
NUT (Ref #4)
4
Part #90179-25004
NUT (Ref #4)
4
Part #90179-25004
NUT (Ref #4)
4
Part #90179-25004
Washer, Plate (Ref #5)
5
Part #90202-26142
Washer, special (Ref #6)
6
Part #26H-23418-01
Nut, Cap (Ref #7)
7
Part #90176-22081
Washer, Plate (Ref #8)
8
Part #90201-220T0
Crown, Handle (Ref #9)
9
Part #3HT-23435-10
Bolt, Flg.(Small Head) (Ref #10)
10
Part #95024-08040
Holder, Handle Upper (Ref #11)
11
Part #4H7-23441-01-38
Holder, Handle Lower (Ref #12)
12
Part #4AA-23442-01-38
Holder, Damper (Ref #13)
13
Part #1T4-23434-00
Holder, Damper (Ref #13)
13
Part #1T4-23434-00
Holder, Damper (Ref #13)
13
Part #1T4-23434-00
Holder, Damper (Ref #13)
13
Part #1T4-23434-00
Washer (Ref #14)
14
Part #90209-12008
Washer, Plate (Ref #15)
15
Part #90201-10026
Nut, U (Ref #16)
16
Part #95607-10100
. BOLT, HEXAGON SOCKET HEAD (Ref #17)
17
Part #91314-08035
PLUG (Ref #18)
18
Part #90338-08163
