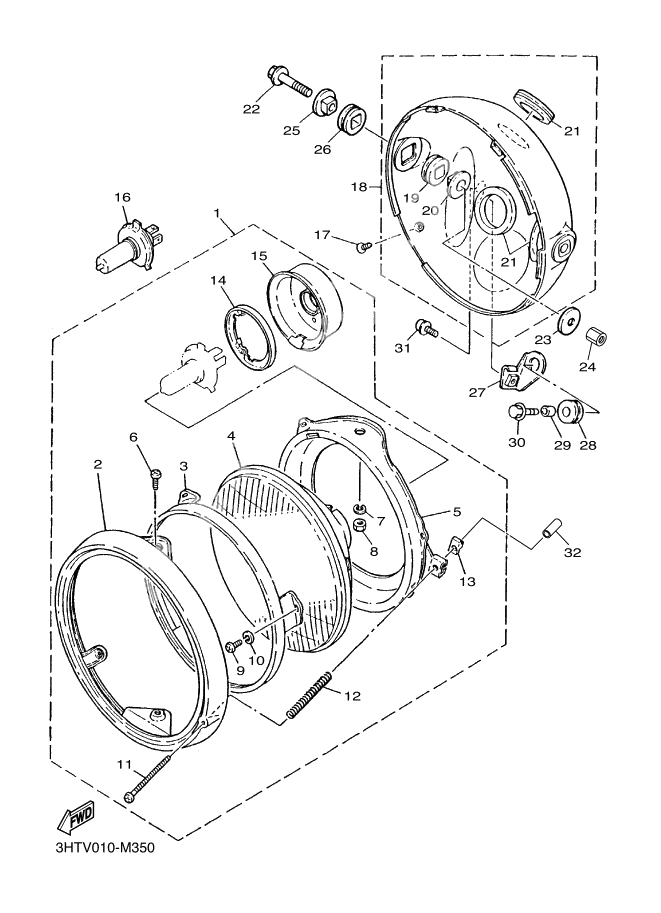

HEAD LAMP
HEAD LAMP
HEADLIGHT UNIT ASSY (Ref #1)
1
Part #2F3-84303-A0
Rim, Headlight (Ref #2)
2
Part #341-84315-40
Ring, retaining (Ref #3)
3
Part #2F9-84395-00
LENS ASSY (Ref #4)
4
Part #2F3-84321-A0
Ring, mounting (Ref #5)
5
Part #2F9-84394-00
Screw (Ref #6)
6
Part #1JK-84365-09
. WASHER, SPRING (Ref #7)
7
Part #92901-05100
Nut, Hexagon (Ref #8)
8
Part #95302-04600
. . SCREW, PAN HEAD (Ref #9)
9
Part #98501-04008
. WASHER, SPRING (Ref #10)
10
Part #92901-04100
Screw, Rim Adjusting (Ref #11)
11
Part #2F9-84331-00
Spring, Screw (Ref #12)
12
Part #341-84332-60
Nut, adjusting (Ref #13)
13
Part #198-84334-60
. SETTING PLATE, BULB (Ref #14)
14
Part #2F9-84375-00
. COVER, SOCKET (Ref #15)
15
Part #2F9-84397-01
. BULB (12V-60/55W) (Ref #16)
16
Part #2F9-84314-00
Screw, Countersunk (Ref #17)
17
Part #90152-05005
Body Assy (Ref #18)
18
Part #1JK-84330-00-93
. DAMPER, HEADLIGHT (Ref #19)
19
Part #584-84345-60
. COLLAR, BODY FITTING (Ref #20)
20
Part #584-84338-60
. GROMMET, WIREHERNESS (Ref #21)
21
Part #214-84153-60
. GROMMET, WIREHERNESS (Ref #21)
21
Part #214-84153-60
. GROMMET, WIREHERNESS (Ref #21)
21
Part #214-84153-60
. GROMMET, WIREHERNESS (Ref #21)
21
Part #214-84153-60
Bolt, Flange (Ref #22)
22
Part #90105-08244
Washer (Ref #23)
23
Part #90209-08098
NUT (Ref #24)
24
Part #90170-08009
カラー,フラツシヤ 1 (Ref #25)
25
Part #341-83316-01
Damper, Flasher 1 (Ref #26)
26
Part #341-83321-01
STAY, HEADLIGHT 1 (Ref #27)
27
Part #3HT-84318-00
GROMMET (Ref #28)
28
Part #90480-14229
COLLAR (Ref #29)
29
Part #90387-0714B
Bolt, With Washer (Ref #30)
30
Part #90119-06038
Screw, With Washer (Ref #31)
31
Part #90159-06160
Cap,1 (Ref #32)
32
Part #3HT-84385-00
