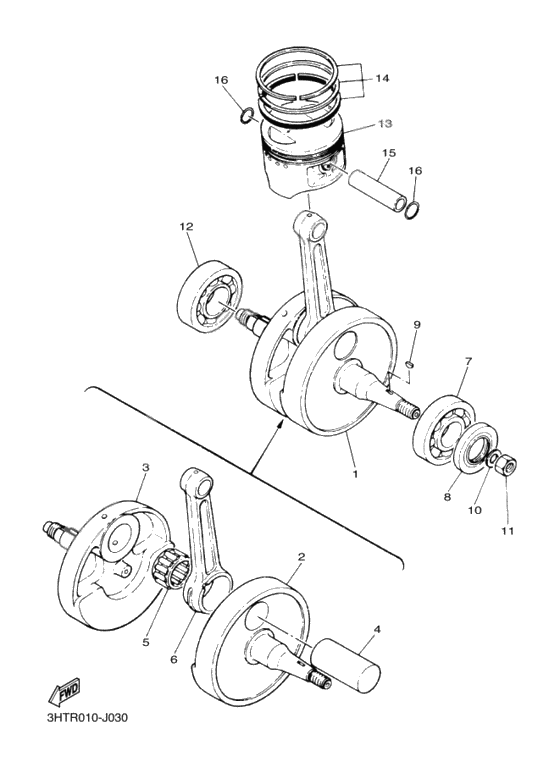

Crankshaft, piston
Crankshaft, piston
Коленчатый вал (Ref #1)
1
Part #2H6-11400-01-00
Кривошип привода (Ref #2)
2
Part #2H6-11412-00-00
Кривошип привода (Ref #3)
3
Part #2H6-11422-01-00
Палец шатунный (Ref #4)
4
Part #583-11681-01-00
Bearing, Cylinder.#10 (Ref #5)
5
Part #93310-635A5-00
Rod, connecting (Ref #6)
6
Part #2H6-11651-00-00
BEARING (Ref #7)
7
Part #93306-30630-00
Сальник (Ref #8)
8
Part #93102-30145-00
KEY,WOODRUFF (Ref #9)
9
Part #90280-05001-00
Washer, Plate (Ref #10)
10
Part #90201-12593-00
Nut, flange (Ref #11)
11
Part #90170-12347-00
Подшипник (Ref #12)
12
Part #93306-30702-00
Piston (std) (Ref #13)
13
Part #2H6-11631-01-96
Кольца поршневые (std) (Ref #14)
14
Part #583-11610-02-00
Pin, Piston (Ref #15)
15
Part #2J2-11633-01-00
Circlip (Ref #16)
16
Part #93450-22027-00
Circlip (Ref #16)
16
Part #93450-22027-00
Circlip (Ref #16)
16
Part #93450-22027-00
Circlip (Ref #16)
16
Part #93450-22027-00
