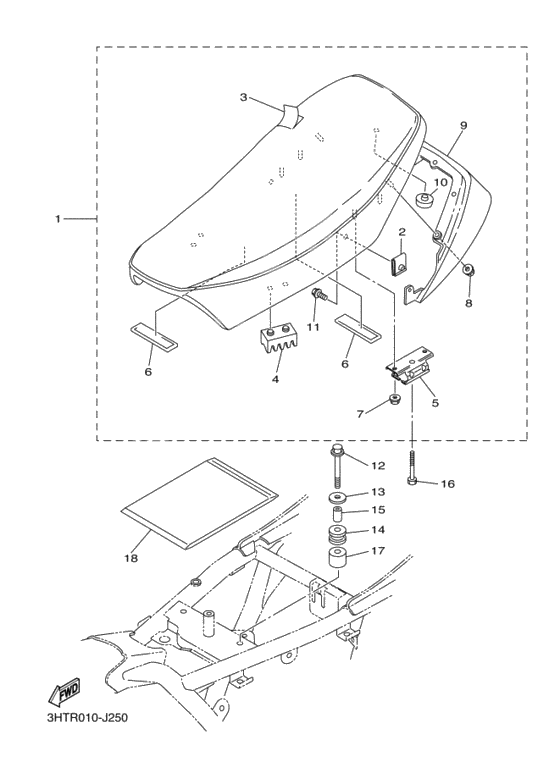

Seat
Seat
ダブルシ−トアセンブリ (Ref #1)
1
Part #3HT-24730-40-P0
Nut, Spring (Ref #2)
2
Part #901-83051-A0-00
カバ−,シ−ト (Ref #3)
3
Part #3HT-24731-40-00
Damper, Seat (Ref #4)
4
Part #2J2-24723-00-00
Damper, Seat (Ref #5)
5
Part #2J2-24724-01-00
HOOK, SPRING (Ref #6)
6
Part #4KG-2814E-10-00
HOOK, SPRING (Ref #6)
6
Part #4KG-2814E-10-00
HOOK, SPRING (Ref #6)
6
Part #4KG-2814E-10-00
HOOK, SPRING (Ref #6)
6
Part #4KG-2814E-10-00
Гайка, самоблокирующаяся (Ref #7)
7
Part #95604-06200-00
Nut, U Flange (Ref #8)
8
Part #956-07052-00-00
カバ−，テ−ル (Ref #9)
9
Part #2J2-24756-00-PA
Pad, Seat (Ref #10)
10
Part #22W-24741-00-00
Болт с шайбой (Ref #11)
11
Part #901-19050-15-00
Болт (Ref #12)
12
Part #95812-06055-00
Шайба (Ref #13)
13
Part #90201-06074-00
Damper, Seat (Ref #14)
14
Part #2J2-24737-00-00
Collar, Lever 1 (Ref #15)
15
Part #36Y-83913-01-00
Bolt (Ref #16)
16
Part #90101-08439-00
スペ−サ 1 (Ref #17)
17
Part #3HT-24725-00-00
Pouch (Ref #18)
18
Part #4KG-28186-00-00
-
795602-06200-00
Nut, Self-Locking
4Replaced by 95604-06200-00 Доступно: Нет в наличии
