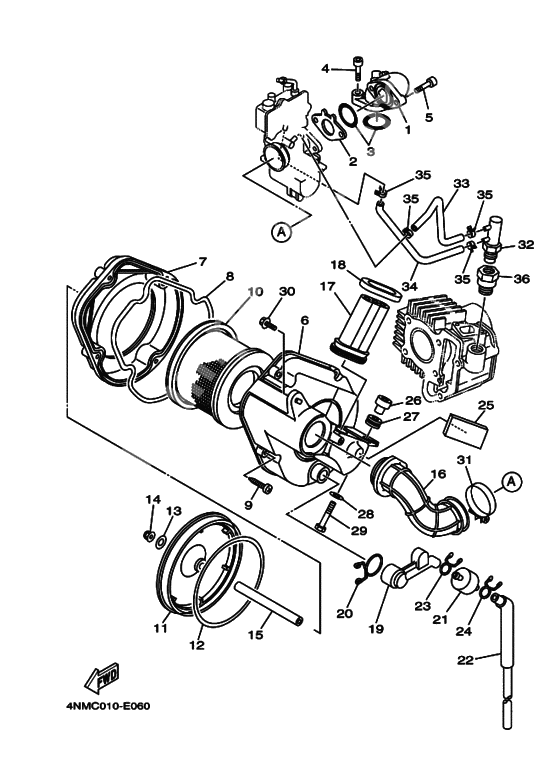

Intake
Intake
Joint, Carburetor 1 (Ref #1)
1
Part #4GL-13586-10-00
JOINT (Ref #2)
2
Part #4GL-13595-01-00
Washer, Needle Valve (Ref #3)
3
Part #93210-25552-00
BOLT (Ref #4)
4
Part #91317-06025-00
Case, Air Cleaner 1 (Ref #6)
6
Part #4GL-14411-13-00
Case, Air Cleaner 2 (Ref #7)
7
Part #4GL-14421-00-00
. SEAL (Ref #8)
8
Part #1VJ-14462-00-00
Screw, Tapping (Ref #9)
9
Part #97707-50525-00
Фильтрующий элемент (Ref #10)
10
Part #4GL-14451-00-00
Cap, Cleaner Case 1 (Ref #11)
11
Part #4GL-14412-00-00
COLLAR (Ref #13)
13
Part #90387-065X7-00
Гайка корончатая (Ref #14)
14
Part #90176-06065-00
COLLAR (Ref #15)
15
Part #90387-0603T-00
Joint, Air Cleaner 1 (Ref #16)
16
Part #4GL-14453-00-00
JOINT (Ref #17)
17
Part #4GL-14454-00-00
. SEAL (Ref #18)
18
Part #4GL-14457-00-00
JOINT (Ref #19)
19
Part #4GL-14568-00-00
Clip, Scissor (Ref #20)
20
Part #90467-24096-00
Фильтр (Ref #21)
21
Part #4X7-2149Y-00-00
. . VALVE, CHECK (Ref #22)
22
Part #4GL-14148-00-00
Хомут (Ref #23)
23
Part #90467-13844-00
Хомут (Ref #23)
23
Part #90467-13M13-00
CLIP (Ref #24)
24
Part #90467-11106-00
Дэмпфер соединения (Ref #25)
25
Part #26H-21746-00-00
COLLAR (Ref #26)
26
Part #90387-062F5-00
GROMMET (Ref #27)
27
Part #90480-12497-00
Washer, Plate (Ref #28)
28
Part #90201-06778-00
BOLT (Ref #29)
29
Part #97017-06030-00
Screw, With Washer (Ref #30)
30
Part #90119-06039-00
BAND (Ref #31)
31
Part #5TN-E3575-00-00
Compensator assy (Ref #32)
32
Part #4GL-14303-00-00
. . VALVE, CHECK (Ref #33)
33
Part #5DV-14349-00-00
. . VALVE, CHECK (Ref #34)
34
Part #5DV-14348-00-00
Washer, Needle Valve (Ref #36)
36
Part #4GL-14442-00-00
