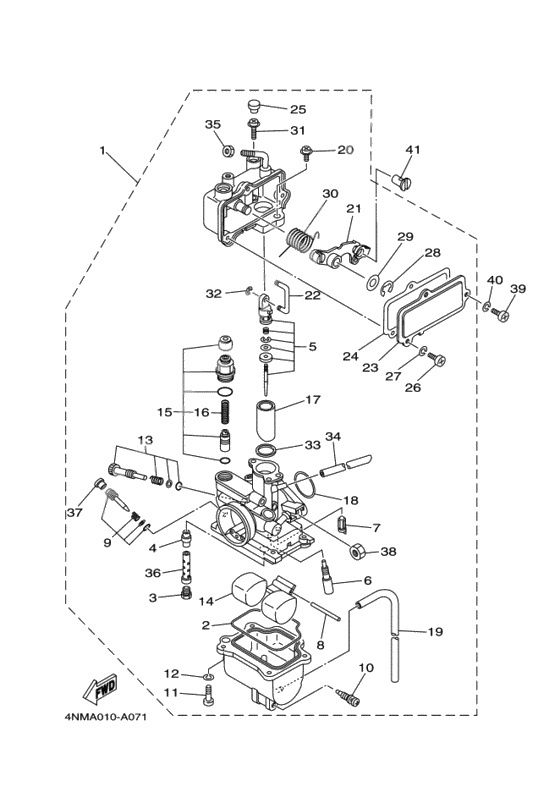

Carburator
Carburator
CARBURETOR ASSY (Ref #1)
1
Part #4GL-14101-10-00
Валик (Ref #2)
2
Part #4GL-14239-00-00
Jet, main (#100) (Ref #3)
3
Part #18A-14143-20-00
Распылитель главный (Ref #4)
4
Part #5HN-14141-13-00
Needle set (Ref #5)
5
Part #4GL-1490J-10-00
Jet, Pilot (# 12.5) (Ref #6)
6
Part #4GL-14142-12-00
. . VALVE, CHECK (Ref #7)
7
Part #7LG-14150-11-00
Штифт плавающий (Ref #8)
8
Part #353-14186-00-00
Air Screw Set (Ref #9)
9
Part #5JE-14104-00-00
Заглушка дренажная (Ref #10)
10
Part #12R-14191-00-00
Screw, Pan Head (Ref #11)
11
Part #98507-04010-00
Шайба, стопорная (Ref #12)
12
Part #92907-04100-00
Throttle Screw Set (Ref #13)
13
Part #5DV-14103-00-00
. FLOAT (Ref #14)
14
Part #5HN-14985-00-00
Starter Set (Ref #15)
15
Part #5DV-1410A-00-00
Coil, Spring (Ref #16)
16
Part #5JE-14135-00-00
Valve, Throttle (Ref #17)
17
Part #4GL-1411G-30-00
Washer, Needle Valve (Ref #18)
18
Part #241-14147-00-00
Pipe 1 (Ref #19)
19
Part #4GL-14348-00-00
BOLT (Ref #20)
20
Part #4GL-14565-00-00
Bracket 2 (Ref #21)
21
Part #4GL-14292-10-00
ROD (Ref #22)
22
Part #4GL-14577-10-00
Cover 1 (Ref #23)
23
Part #4GL-14293-00-00
Washer, Needle Valve (Ref #24)
24
Part #4GL-14536-10-00
Plug, Screw (Ref #25)
25
Part #3F7-14991-00-00
CLIP (Ref #28)
28
Part #812-14137-00-00
Washer, Plate (Ref #29)
29
Part #1A8-14953-00-00
Spring, Pilot Adjusting (Ref #30)
30
Part #4GL-14275-01-00
BOLT (Ref #31)
31
Part #4DU-14125-00-00
CLIP (Ref #32)
32
Part #256-14919-00-00
Washer, Needle Valve (Ref #33)
33
Part #1V3-14126-00-00
HOSE (Ref #34)
34
Part #3XV-14348-00-00
Гайка кабеля (Ref #35)
35
Part #522-14161-00-00
Pipe (Ref #36)
36
Part #5HN-14148-00-00
Cap, carburetor (Ref #37)
37
Part #6K8-14471-10-00
Nut, flange (Ref #38)
38
Part #5DV-14594-10-00
Направляющая кабеля (Ref #41)
41
Part #4GL-14155-10-00
