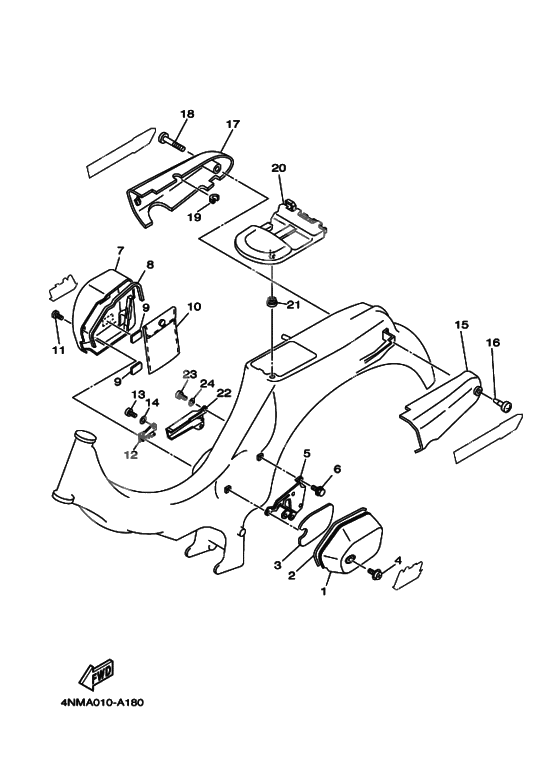

Side Covers
Side Covers
Крышка, бок 1 (Ref #1)
1
Part #4GL-21711-00-T7
Mole, Side Cover 1 (Ref #2)
2
Part #4GL-2171L-00-00
DAMPER (Ref #3)
3
Part #4GL-21717-00-00
Screw, Pan Head With (Ref #4)
4
Part #90159-06093-00
ブラケツト, クーラント パイプ (Ref #5)
5
Part #4GL-2172L-01-00
BOLT (Ref #6)
6
Part #95027-06012-00
Крышка, боковая стороно 2 (Ref #7)
7
Part #4GL-21721-10-T7
Mole, Side Cover 2 (Ref #8)
8
Part #4GL-2171M-10-00
HOOK, SPRING (Ref #9)
9
Part #4K5-2814E-10-00
HOOK, SPRING (Ref #9)
9
Part #4K5-2814E-10-00
HOOK, SPRING (Ref #9)
9
Part #4K5-2814E-10-00
HOOK, SPRING (Ref #9)
9
Part #4K5-2814E-10-00
Emblem (Ref #10)
10
Part #4K5-28186-00-00
Bolt, Side Cover (Ref #11)
11
Part #18A-21712-00-00
Stay, Side Cover 2 (Ref #12)
12
Part #3KX-21322-00-00
BOLT (Ref #13)
13
Part #97017-06012-00
Washer, Plate (Ref #14)
14
Part #92907-06600-00
Cover, Side 3 (Ref #15)
15
Part #4AV-21731-10-00
Cover, Side 4 (Ref #17)
17
Part #4AV-21741-10-00
BOLT (Ref #18)
18
Part #18A-21722-01-00
PLATE, SEAL DAMPER (Ref #19)
19
Part #90480-15489-00
LID (Ref #20)
20
Part #4GL-2172W-01-00
GROMMET (Ref #21)
21
Part #90480-13567-00
Holder, Clutch Cable (Ref #22)
22
Part #3AC-21162-00-T7
Screw, Pan Head (Ref #23)
23
Part #98507-06014-00
