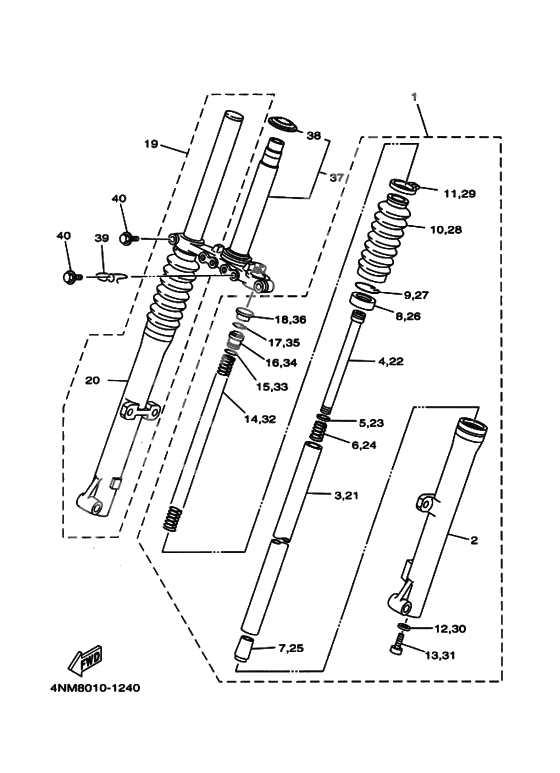

Front fork
Front fork
Front Fork Assy (L.h) (Ref #1)
1
Part #4GL-23102-10-35
Tube, Outer (L.h) (Ref #2)
2
Part #4GL-23126-10-35
Inner Tube Comp.1 (Ref #3)
3
Part #4GL-23110-10-00
Piston, Front Fork (Ref #4)
4
Part #4GL-23171-10-00
Ring, Piston (Ref #5)
5
Part #5R2-23157-00-00
Spring, Rebound (Ref #6)
6
Part #5R2-23151-00-00
Spindle, Taper (Ref #7)
7
Part #4GL-23173-10-00
Oil seal (Ref #8)
8
Part #5FC-23145-00-00
Circlip (Ref #9)
9
Part #93450-42110-00
Ботинок (Ref #10)
10
Part #5U8-23191-00-00
Clamp, hose (Ref #11)
11
Part #90460-32255-00
Прокладка (Ref #12)
12
Part #90430-08143-00
Washer, Needle Valve (Ref #12)
12
Part #90201-08087-00
Болт диагональный (Ref #13)
13
Part #90110-08N51-00
Spring, Front Fork (Ref #14)
14
Part #4GL-23141-10-00
Washer, Needle Valve (Ref #15)
15
Part #93210-16500-00
Bolt, cap (Ref #16)
16
Part #3VP-23111-00-00
. CIRCLIP (Ref #17)
17
Part #3VP-23183-00-00
CAP (Ref #18)
18
Part #5FC-23154-00-00
Front Fork Assy (R.h) (Ref #19)
19
Part #4GL-23103-10-35
Tube, Outer 2 (Ref #20)
20
Part #4GL-23136-10-35
UNDER BRACKET COMP. (Ref #37)
37
Part #4GL-23340-00-33
Обойма шарика 1 (Ref #38)
38
Part #156-23411-00-00
Wire, Holder 1 (Ref #39)
39
Part #4GL-23318-00-00
BOLT (Ref #40)
40
Part #90105-10289-00
BOLT (Ref #40)
40
Part #90105-10289-00
BOLT (Ref #40)
40
Part #90105-10289-00
BOLT (Ref #40)
40
Part #90105-10289-00
BOLT (Ref #40)
40
Part #90105-10115-00
BOLT (Ref #40)
40
Part #90105-10115-00
BOLT (Ref #40)
40
Part #90105-10115-00
BOLT (Ref #40)
40
Part #90105-10115-00
