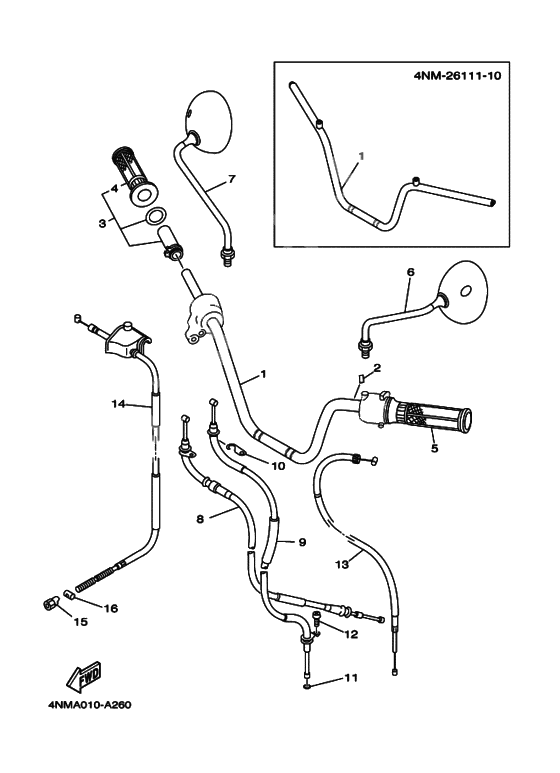

Steering Handle, Cable
Steering Handle, Cable
HANDLEBAR (Ref #1)
1
Part #4NM-26111-20-00
HANDLEBAR (Ref #1)
1
Part #4NM-26111-20-00
HANDLEBAR (Ref #1)
1
Part #4NM-26111-20-00
HANDLEBAR (Ref #1)
1
Part #4NM-26111-20-00
Наклейка, дроссель (Ref #2)
2
Part #2E9-26139-01-00
HANDLE, GEAR SHIFT (Ref #3)
3
Part #3AC-26240-00-00
Грипса (Ref #4)
4
Part #3RY-26242-02-00
Грипса (Ref #5)
5
Part #3RY-26241-02-00
Rear View Mirror Assy (Left) (Ref #6)
6
Part #4GL-26280-02-00
Rear View Mirror Assy (Right) (Ref #7)
7
Part #4GL-26290-02-00
Cable, Throttle 1 (Ref #8)
8
Part #4GL-26311-00-00
Cable, Throttle 2 (Ref #9)
9
Part #4GL-26312-00-00
HOLDER (Ref #10)
10
Part #4GL-26393-00-00
Кольцо (26H) (Ref #11)
11
Part #93210-06667-00
Screw, Pan Head (Ref #12)
12
Part #985-07050-08-00
Cable, Starter 1 (Ref #13)
13
Part #4GL-26331-01-00
Wire, Brake 1 (Ref #14)
14
Part #4GL-26341-01-00
Nut, flange (Ref #15)
15
Part #90179-06411-00
PIN (Ref #16)
16
Part #90249-12008-00
