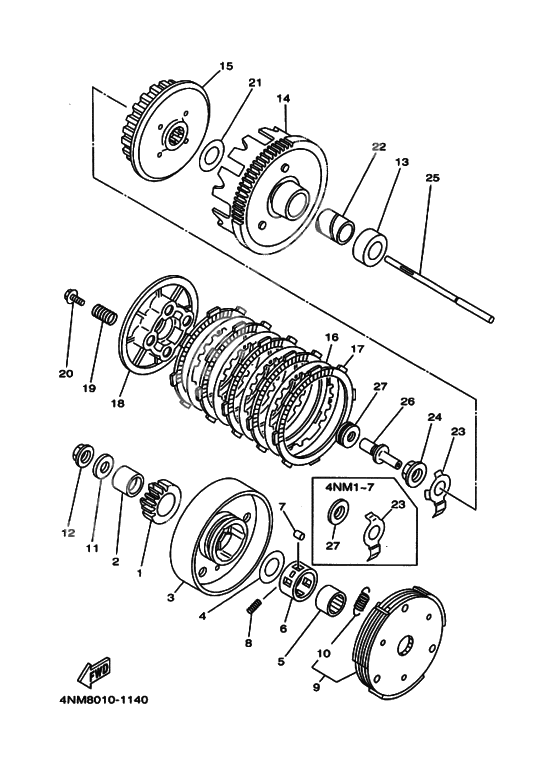

Сцепление
Сцепление
Gear, Primary Drive (18T) (Ref #1)
1
Part #4GL-16111-00-00
COLLAR (Ref #2)
2
Part #90387-16001-00
. クラツチアセンブリ (Ref #3)
3
Part #4GL-16611-00-00
Washer, Plate (Ref #4)
4
Part #90201-167P7-00
Ботинок муфты (Ref #5)
5
Part #4GL-16512-01-00
Cage (Ref #6)
6
Part #4GL-16586-01-00
Pin, Dowel (Ref #7)
7
Part #93606-10227-00
Spring, Compression (Ref #8)
8
Part #90501-047H5-00
Ведущий механизм (Ref #9)
9
Part #4GL-16620-02-00
Spring, Clutch Weight 1 (Ref #10)
10
Part #4GL-16626-01-00
Washer, Plate (Ref #11)
11
Part #90201-122H1-00
Nut, flange (Ref #12)
12
Part #90179-12659-00
SPACER (Ref #13)
13
Part #90560-17384-00
PRIMARY DRIVEN GEAR COMP. (Ref #14)
14
Part #4GL-16150-03-00
Ботинок муфты (Ref #15)
15
Part #2JG-16371-00-00
Plate, Clutch 1 (Ref #16)
16
Part #2JG-16324-00-00
プレート, トランサム (Ref #17)
17
Part #3YR-16321-00-00
Крышка сцепления. (Ref #18)
18
Part #2JG-16351-02-00
Spring, Compression (Ref #19)
19
Part #90501-217J8-00
Screw, With Washer (Ref #20)
20
Part #90119-05001-00
Washer, Plate (Ref #21)
21
Part #90201-174L9-00
SPACER (Ref #22)
22
Part #90560-17328-00
Шайба, стопорная (Ref #23)
23
Part #4GL-16135-00-00
Шайба, стопорная (Ref #23)
23
Part #4GL-16135-00-00
Шайба, стопорная (Ref #23)
23
Part #4GL-16135-00-00
Шайба, стопорная (Ref #23)
23
Part #4GL-16135-00-00
Гайка (Ref #24)
24
Part #90179-14001-00
Rod, Push 2 (Ref #25)
25
Part #4GL-16357-10-00
Rod, Push 1 (Ref #26)
26
Part #4S9-E6356-00-00
BEARING (Ref #27)
27
Part #93340-21008-00
BEARING (Ref #27)
27
Part #93340-21008-00
BEARING (Ref #27)
27
Part #93340-21008-00
BEARING (Ref #27)
27
Part #93340-21008-00
