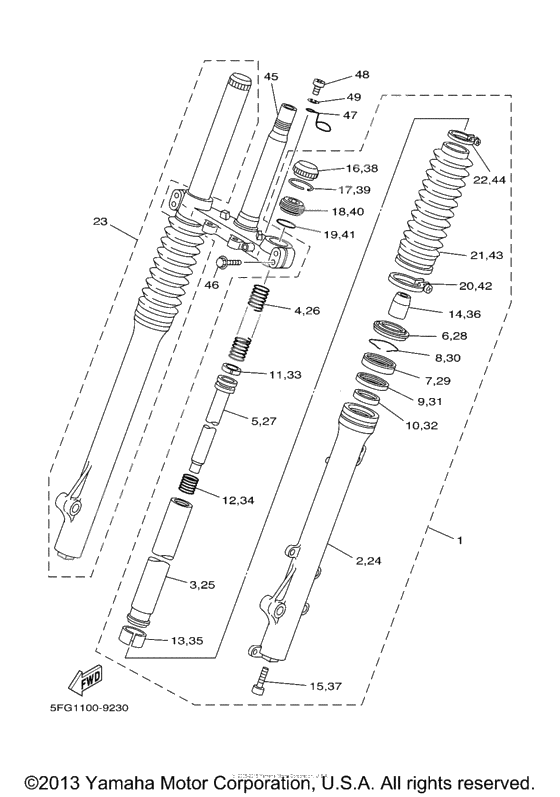

Front fork
Front fork
Front Fork Assy (L.h) (Ref #1)
1
Part #4VW-F3102-22-00
Труба внешняя (Ref #2)
2
Part #34X-23126-00-38
Внутренняя трубка (Ref #3)
3
Part #4AN-F3110-00-00
Spring, Pilot Adjusting (Ref #4)
4
Part #3RW-23351-00-00
Piston, Front Fork (Ref #5)
5
Part #3RW-23171-00-00
PLATE, SEAL DAMPER (Ref #6)
6
Part #1KH-23144-00-00
Oil seal (Ref #7)
7
Part #1KH-23145-00-00
Ring, Snap (Ref #8)
8
Part #34X-23156-00-00
Washer, Needle Valve (Ref #9)
9
Part #1KH-23147-00-00
Металическая вставка 1 (Ref #10)
10
Part #34X-23125-00-00
Кольцо поршневое (Ref #11)
11
Part #34X-23157-00-00
Spring, Pilot Adjusting (Ref #12)
12
Part #34X-23151-00-00
Metal, Slide 2 (Ref #13)
13
Part #34X-23135-00-00
Washer, Plate (Ref #14)
14
Part #4AN-F3166-00-00
Болт диагональный (Ref #15)
15
Part #3M7-23181-00-00
Чашка передней вилки (Ref #16)
16
Part #35E-23168-00-00
Circlip (Ref #17)
17
Part #35E-23183-00-00
Bolt, cap (Ref #18)
18
Part #35E-23111-00-00
GASKET (Ref #19)
19
Part #58W-F3114-00-00
BAND (Ref #20)
20
Part #3RW-23192-00-00
Ботинок (Ref #21)
21
Part #2TW-F3191-L0-00
BAND (Ref #22)
22
Part #34X-23192-00-00
Front Fork Assy (R.h) (Ref #23)
23
Part #4VW-F3103-22-00
Труба внешняя (Ref #24)
24
Part #34X-23136-00-38
Under Bracket Comp (Ref #45)
45
Part #53V-23340-00-90
BOLT (Ref #46)
46
Part #95024-08035-00
Направляющая кабеля (Ref #47)
47
Part #4AN-F331E-00-00
Screw, Pan Head (Ref #48)
48
Part #98517-06012-00
Washer, Plate (Ref #49)
49
Part #9290M-06100-00
-
14VW-F3102-21-00
Front Fork Assy (L.h)
1Replaced by 4VW-F3102-22-00 Доступно: Нет в наличии
-
234VW-F3103-21-00
Front Fork Assy (R.h)
1Replaced by 4VW-F3103-22-00 Доступно: Нет в наличии
-
454AN-F3340-10-00
Under Bracket Comp
1Replaced by 53V-23340-00-90 Доступно: Нет в наличии
-
4898507-06012-00
Screw, Pan Head
1Replaced by 98517-06012-00 Доступно: Нет в наличии
