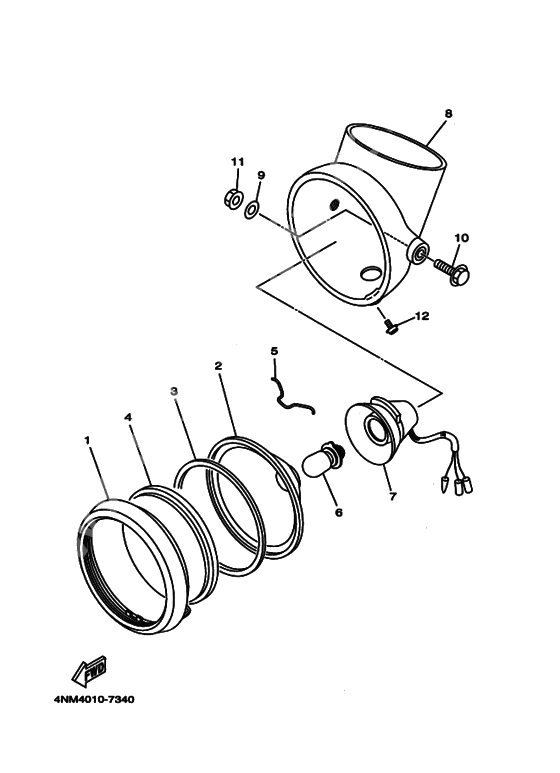

Head Light(s) 4NM4,5,7,8
Head Light(s) 4NM4,5,7,8
Rim, headlight (Ref #1)
1
Part #207-84115-01-00
REFLECTOR (Ref #2)
2
Part #4NM-84123-10-00
Gasket, lens (Ref #3)
3
Part #207-84122-00-00
Lens, headlight (Ref #4)
4
Part #2VT-84121-00-00
Spring, Set (Ref #5)
5
Part #3L6-84124-00-00
Bulb, Head Light (12V-30/30W) (Ref #6)
6
Part #3NS-84314-00-00
Socket Cord Assy 2 (Ref #7)
7
Part #4NM-84150-00-00
Body, Headlight (Ref #8)
8
Part #207-84111-00-P0
Washer, Plate (Ref #9)
9
Part #92907-08200-00
BOLT (Ref #10)
10
Part #95817-08025-00
BOLT (Ref #10)
10
Part #958-17080-20-00
Nut, flange (Ref #11)
11
Part #90179-08491-00
Screw, Pan Head With (Ref #12)
12
Part #90159-05023-00
