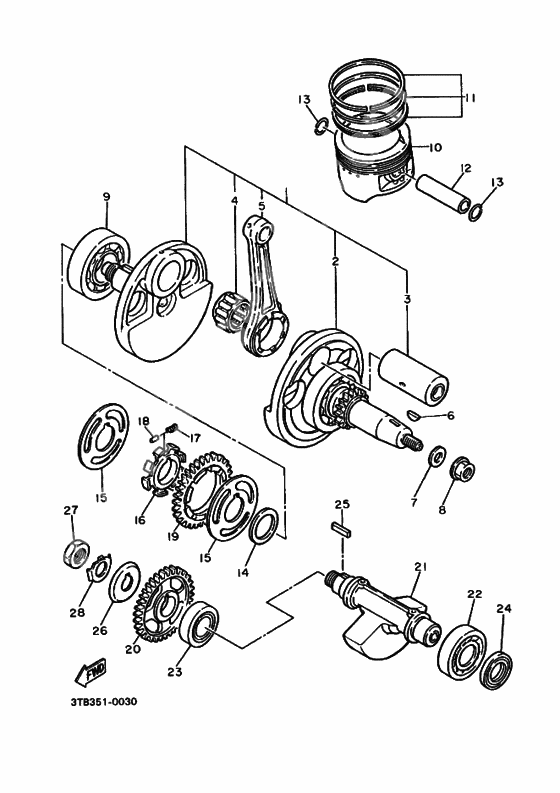

Crankshaft piston
Crankshaft piston
Вал коленчатый (Ref #1)
1
Part #3TB-11400-00-00
Кривошип (Ref #2)
2
Part #1VJ-W1141-00-00
Палец шатунный (Ref #3)
3
Part #1VJ-11681-00-00
BEARING (Ref #4)
4
Part #93310-635D4-00
Rod, connecting (Ref #5)
5
Part #3TB-11651-00-00
KEY,WOODRUFF (Ref #6)
6
Part #90280-05001-00
Washer, Plate (Ref #7)
7
Part #90201-14022-00
Nut, flange (Ref #8)
8
Part #90179-14541-00
Подшипник (Ref #9)
9
Part #93306-30702-00
Piston (1.00Mm O/s) (Ref #10)
10
Part #3TB-11638-00-00
Piston (0.50Mm O/s) (Ref #10)
10
Part #3TB-11636-00-00
Piston (std) (Ref #10)
10
Part #3TB-11631-00-Y0
Кольца поршневые (Ref #11)
11
Part #34L-11610-40-00
Кольца поршневые (Ref #11)
11
Part #34L-11610-00-00
Кольца поршневые (Ref #11)
11
Part #34L-11610-20-00
Pin, piston (Ref #12)
12
Part #1JK-11633-01-00
Circlip (Ref #13)
13
Part #934-50240-28-00
Circlip (Ref #13)
13
Part #934-50240-28-00
Circlip (Ref #13)
13
Part #934-50240-28-00
Circlip (Ref #13)
13
Part #934-50240-28-00
Washer, Plate (Ref #14)
14
Part #90201-301F4-00
Washer, Bearing Cover (Ref #15)
15
Part #34K-11565-02-00
Washer, Bearing Cover (Ref #15)
15
Part #34K-11565-02-00
Washer, Bearing Cover (Ref #15)
15
Part #34K-11565-02-00
Washer, Bearing Cover (Ref #15)
15
Part #34K-11565-02-00
Boss, Buffer (Ref #16)
16
Part #5Y1-11496-01-00
Пружина (Ref #17)
17
Part #90501-22721-00
Pin, Dowel (Ref #18)
18
Part #93605-10090-00
Ведущая шестерня (Ref #19)
19
Part #2JT-11536-00-00
Gear, Balance Wt 44T (Ref #20)
20
Part #5Y1-11531-00-00
Грузик (Ref #21)
21
Part #34K-11454-00-00
Bearing (B6305) (Ref #22)
22
Part #93306-30525-00
Подшипник (Ref #23)
23
Part #93306-30560-00
Oil seal (Ref #24)
24
Part #93101-25106-00
Key, Straight (Ref #25)
25
Part #90282-05065-00
Plate, Breather 2 (Ref #26)
26
Part #34K-11145-00-00
Nut, flange (Ref #27)
27
Part #90170-16343-00
Washer, lock (Ref #28)
28
Part #90215-16242-00
-
-
Цена: 840.00 р.
Доступно: 0
-
