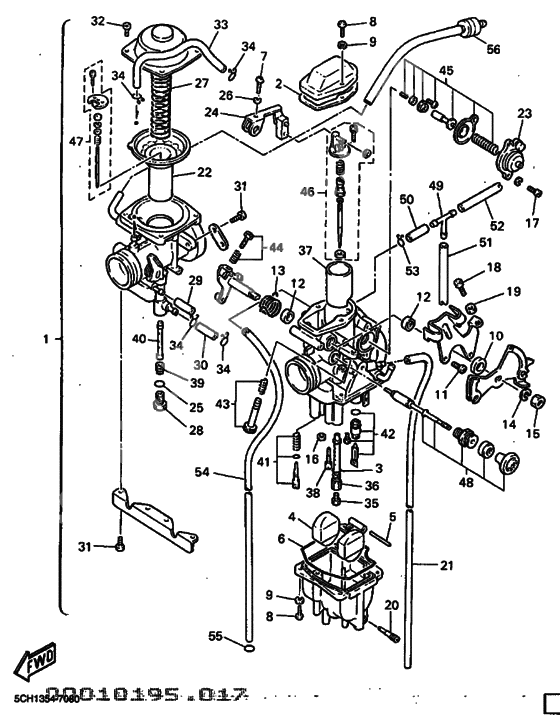

Carburetor assy
Carburetor assy
CARBURETOR ASSY (Ref #1)
1
Part #5CH-14301-10-00
Washer, Needle Valve (Ref #2)
2
Part #2JN-14198-00-00
Washer, Needle Valve (Ref #3)
3
Part #360-24512-00-00
. FLOAT (Ref #4)
4
Part #25N-14385-00-00
Штифт плавающий (Ref #5)
5
Part #6E5-14386-01-00
Gasket, float chamber (Ref #6)
6
Part #5Y1-14384-00-00
Screw, Pan Head (Ref #7)
7
Part #4PT-14325-00-00
Screw, Pan Head (Ref #8)
8
Part #98580-04014-00
Screw, Pan Head (Ref #8)
8
Part #98580-04014-00
Screw, Pan Head (Ref #8)
8
Part #98580-04014-00
Screw, Pan Head (Ref #8)
8
Part #98580-04014-00
Washer, Plate (Ref #9)
9
Part #92990-04100-00
Washer, Plate (Ref #9)
9
Part #92990-04100-00
Washer, Plate (Ref #9)
9
Part #92990-04100-00
Washer, Plate (Ref #9)
9
Part #92990-04100-00
Washer, Plate (Ref #10)
10
Part #1JK-14357-00-00
Screw, Lever Fitting (Ref #11)
11
Part #214-24535-00-00
Plate, stay (Ref #12)
12
Part #5Y1-14572-00-00
Plate, stay (Ref #12)
12
Part #5Y1-14572-00-00
Plate, stay (Ref #12)
12
Part #5Y1-14572-00-00
Plate, stay (Ref #12)
12
Part #5Y1-14572-00-00
バルブスプリングリテーナ (Ref #13)
13
Part #2NX-14131-00-00
Washer, Spring (Ref #14)
14
Part #5Y1-14356-00-00
Nut, flange (Ref #15)
15
Part #5Y1-14358-10-00
Washer, Needle Valve (Ref #16)
16
Part #5Y1-14536-00-00
Screw, Pan Head (Ref #17)
17
Part #98580-04010-00
BOLT (Ref #18)
18
Part #98580-04020-00
Nut, flange (Ref #19)
19
Part #30X-14358-00-00
Plug, Screw (Ref #20)
20
Part #5Y1-14115-00-00
Pipe (Ref #21)
21
Part #5CH-14149-00-00
DIAPHRAGM ASSY (Ref #22)
22
Part #3GV-14940-01-00
Cover 1 (Ref #23)
23
Part #2JN-14293-00-00
Bracket 1 (Ref #24)
24
Part #5CH-14291-10-00
Washer, Needle Valve (Ref #25)
25
Part #1JK-14397-00-00
Spring, Pilot Adjusting (Ref #27)
27
Part #1JK-14286-00-00
Valve, drain (Ref #28)
28
Part #7KF-14394-00-00
Pipe (Ref #29)
29
Part #5Y1-14349-00-00
Pipe (Ref #30)
30
Part #30X-14148-00-00
Screw, Pan Head (Ref #31)
31
Part #97885-05010-00
Screw, Pan Head (Ref #31)
31
Part #97885-05010-00
Screw, Pan Head (Ref #31)
31
Part #97885-05010-00
Screw, Pan Head (Ref #31)
31
Part #97885-05010-00
Pipe (Ref #33)
33
Part #5Y1-14149-00-00
Jet, Main (150) (Ref #35)
35
Part #288-14329-75-00
Jet, Main (156) (Ref #35)
35
Part #288-14329-78-00
Main Jet #146 (Ref #35)
35
Part #288-14343-73-00
Nozzle, Main (Ref #36)
36
Part #2KF-14341-00-00
Valve, Throttle 2 (Ref #37)
37
Part #5CH-14313-40-00
Жиклерпроводник (Ref #38)
38
Part #43F-14342-25-00
Jet, main (#145) (Ref #39)
39
Part #30X-14343-73-00
Nozzle, Main 2 (Ref #40)
40
Part #1JK-14355-00-00
Pilot Screw Set (30X-14105-00 (Ref #41)
41
Part #51Y-14105-00-00
Needle Valve Set (Ref #42)
42
Part #2JN-14107-00-00
Stop Screw Set (Ref #43)
43
Part #2NX-1490K-00-00
Throttle Screw Set (Ref #44)
44
Part #2NX-14103-00-00
Комплект диафрагмы (Ref #45)
45
Part #1JK-1490A-00-00
Needle set (Ref #46)
46
Part #5CH-1490J-10-00
Needle set (Ref #47)
47
Part #5CH-1490J-00-00
Плунжерстартер (Ref #48)
48
Part #2KF-14371-01-00
Направляющая трубки (Ref #49)
49
Part #90413-07007-00
HOSE (Ref #50)
50
Part #5CH-1414B-00-00
HOSE (Ref #51)
51
Part #5CH-1414C-00-00
Pipe (Ref #52)
52
Part #3YF-14148-00-00
CLIP (Ref #53)
53
Part #3YF-14159-00-00
Pipe (Ref #54)
54
Part #5CH-E4197-00-00
Washer, Needle Valve (Ref #55)
55
Part #93210-16X00-00
Pipe,airvent (Ref #56)
56
Part #3TD-14197-10-00
-
5689-14386-00-00
Штифт плавающий
1Replaced by 6E5-14386-01-00 Доступно: Нет в наличии
-
1798501-04010-00
Screw, Pan Head
2Replaced by 98580-04010-00 Доступно: Нет в наличии
-
223GV-14940-00-00
DIAPHRAGM ASSY
1Replaced by 3GV-14940-01-00 Доступно: Нет в наличии
-
3198501-05010-00
Screw, Pan Head
6Replaced by 97885-05010-00 Доступно: Нет в наличии
-
35288-14343-75-00
Jet, Main (150)
1Replaced by 288-14329-75-00 Доступно: Нет в наличии
-
35288-14343-78-00
Jet, Main (156)
1Replaced by 288-14329-78-00 Доступно: Нет в наличии
