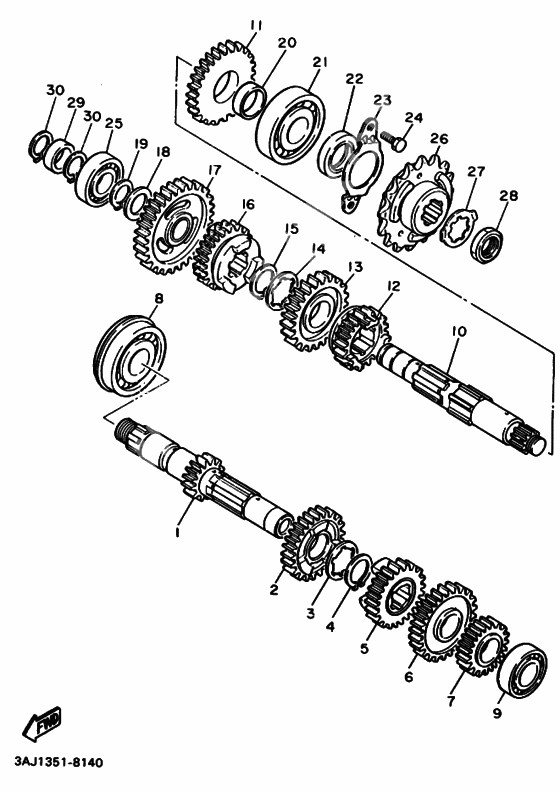

Трансмиссия
Трансмиссия
Axle, Main (Ref #1)
1
Part #4PT-17411-00-00
Шестерня, 4-ая (Ref #2)
2
Part #34K-17141-00-00
Washer, Plate (Ref #3)
3
Part #90209-22191-00
Стопор (Ref #4)
4
Part #934-40250-84-00
Шестерня, 3-ая (Ref #5)
5
Part #1VJ-17131-00-00
Шестерня, 5-ая (Ref #6)
6
Part #2JT-17151-01-00
Шестерня, 2-ая (Ref #7)
7
Part #34K-17121-01-00
Bearing (6305Nrx1C3) (Ref #8)
8
Part #93306-30540-00
BEARING (Ref #9)
9
Part #93306-00431-00
Ось (Ref #10)
10
Part #2RW-17402-00-00
Шестерня, 2-ого колеса) (Ref #11)
11
Part #2JT-17221-00-00
Шестерня, 5-ого колеса (Ref #12)
12
Part #2JT-17251-00-00
Шестерня, 3-го колеса (Ref #13)
13
Part #1VJ-17231-00-00
Шестерня, 4-го колеса (Ref #16)
16
Part #3AJ-17241-00-00
Шестерня, первого колеса (Ref #17)
17
Part #3AJ-17211-00-00
Washer, Plate (Ref #18)
18
Part #90201-20276-00
Circlip (Ref #19)
19
Part #99009-20400-00
SPACER (Ref #20)
20
Part #90560-25283-00
BEARING (Ref #21)
21
Part #93306-30535-00
Oil seal (Ref #22)
22
Part #93102-25218-00
Plate, Cover (Ref #23)
23
Part #5Y1-17471-00-00
Screw, With Washer (Ref #24)
24
Part #97017-06014-00
Bearing (7K2) (Ref #25)
25
Part #93306-00423-00
Sprocket, Drive(Collar, 2Nx) (Ref #26)
26
Part #99999-01798-00
Шайба, стопорная (Ref #27)
27
Part #902-15232-65-00
Nut, flange (Ref #28)
28
Part #90179-18552-00
SPACER (Ref #29)
29
Part #90560-20199-00
