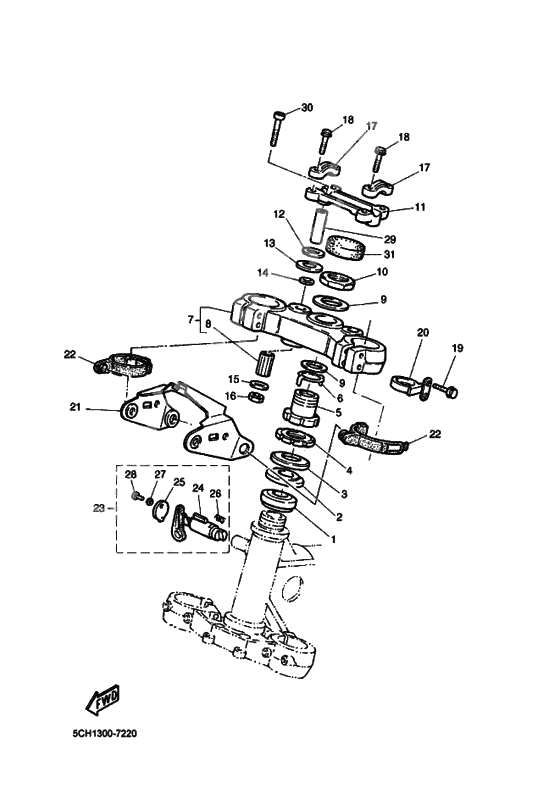

Steering
Steering
Bearing(4Ew) (Ref #2)
2
Part #93332-00078-00
Крышка 2 (Ref #3)
3
Part #2HG-23416-00-00
Nut, flange (Ref #4)
4
Part #90179-28602-00
Nut, flange (Ref #5)
5
Part #90179-28603-00
Washer, special (Ref #6)
6
Part #3SP-23418-00-00
Crown, Handle (Ref #7)
7
Part #5CH-WF341-00-T9
GROMMET (Ref #8)
8
Part #307-22123-00-00
Washer, Plate (Ref #9)
9
Part #90201-365M5-00
Washer, Plate (Ref #9)
9
Part #90201-365M5-00
Washer, Plate (Ref #9)
9
Part #90201-365M5-00
Washer, Plate (Ref #9)
9
Part #90201-365M5-00
Nut, flange (Ref #10)
10
Part #90170-36394-00
HOLDER, HANDLE LOWER (Ref #11)
11
Part #5CH-F3442-00-T9
Washer, Plate (Ref #12)
12
Part #90201-123E8-00
Washer, Plate (Ref #13)
13
Part #90202-14077-00
COLLAR (Ref #14)
14
Part #90387-121E8-00
Washer, Plate (Ref #15)
15
Part #90201-100A1-00
Nut, Fitting 1 (Ref #16)
16
Part #5CH-F3453-00-00
Holder, Handle Upper (Ref #17)
17
Part #5CH-F3441-00-T9
Holder, Handle Upper (Ref #17)
17
Part #5CH-F3441-00-T9
Holder, Handle Upper (Ref #17)
17
Part #5CH-F3441-00-T9
Holder, Handle Upper (Ref #17)
17
Part #5CH-F3441-00-T9
BOLT (Ref #18)
18
Part #95027-08035-00
BOLT (Ref #18)
18
Part #95027-08035-00
BOLT (Ref #18)
18
Part #95027-08035-00
BOLT (Ref #18)
18
Part #95027-08035-00
Болт специальный (Ref #19)
19
Part #5SE-F3394-00-00
Держатель кабеля (Ref #20)
20
Part #3R4-23317-00-00
Stay, headlight (Ref #21)
21
Part #5CH-F3174-00-00
BAND (Ref #22)
22
Part #5CH-F3489-01-00
BAND (Ref #22)
22
Part #5CH-F3489-01-00
BAND (Ref #22)
22
Part #5CH-F3489-01-00
BAND (Ref #22)
22
Part #5CH-F3489-01-00
Steering Lock Assy (Ref #23)
23
Part #5CH-F3408-00-00
Body & Key, Steering Lock (Ref #24)
24
Part #5CH-F3482-00-00
Cap, Handle Lock (Ref #25)
25
Part #5CH-F3484-00-00
Spring, Pilot Adjusting (Ref #26)
26
Part #5CH-F348G-00-00
Stay, Plate (Ref #27)
27
Part #5CH-F3486-00-00
RIVET (Ref #28)
28
Part #5CH-F3483-10-00
SPACER (Ref #29)
29
Part #5CH-F3448-00-00
BOLT (Ref #30)
30
Part #5CH-F3436-00-00
CAP (Ref #31)
31
Part #5CH-F319U-10-00
