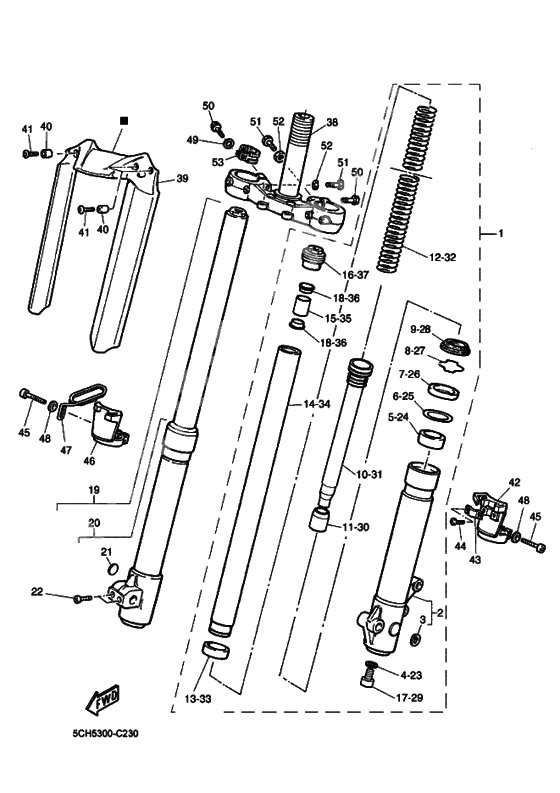

Front
Front
Front Fork Assy (L.h) (Ref #1)
1
Part #5CH-F3102-10-00
Труба внешняя (Ref #2)
2
Part #5CH-F3126-10-00
Emblem (Ref #3)
3
Part #5CH-F3108-00-00
Washer, Felt (Ref #4)
4
Part #5CH-F3165-00-00
Металическая вставка 1 (Ref #5)
5
Part #5CH-F3125-00-00
Шайба сальника (Ref #6)
6
Part #5CH-F3146-00-00
Oil seal (Ref #7)
7
Part #5CH-F3145-00-00
RETAINER, MAGNETO BASE (Ref #8)
8
Part #4GV-F3153-00-00
PLATE, SEAL DAMPER (Ref #9)
9
Part #5CH-F3144-00-00
Цилиндр, передняя вилка (Ref #10)
10
Part #5CH-F3170-10-00
Spindle, Taper (Ref #11)
11
Part #5CH-F3173-00-00
Пружина передней вилки (Ref #12)
12
Part #5CH-F3141-10-00
Metal, Slide 2 (Ref #13)
13
Part #5CH-F3135-00-00
Внутренняя трубка (Ref #14)
14
Part #5CH-F3110-10-00
SPACER (Ref #15)
15
Part #5CH-F3118-10-00
Болт стакана (Ref #16)
16
Part #5CH-F3111-10-00
BOLT (Ref #17)
17
Part #9131L-12030-00
Spring, Pilot Adjusting (Ref #18)
18
Part #5CH-F3115-00-00
Spring, Pilot Adjusting (Ref #18)
18
Part #5CH-F3115-00-00
Spring, Pilot Adjusting (Ref #18)
18
Part #5CH-F3115-00-00
Spring, Pilot Adjusting (Ref #18)
18
Part #5CH-F3115-00-00
Front Fork Assy (R.h) (Ref #19)
19
Part #5CH-F3103-10-00
Труба внешняя (Ref #20)
20
Part #5CH-F3136-10-00
BOLT (Ref #22)
22
Part #9131L-06020-00
UNDER BRACKET COMP. (Ref #38)
38
Part #5CH-F3340-00-00
PROTECTOR (Ref #39)
39
Part #5CH-F3472-00-00
COLLAR (Ref #40)
40
Part #90387-05X02-00
COLLAR (Ref #40)
40
Part #90387-05X02-00
COLLAR (Ref #40)
40
Part #90387-05X02-00
COLLAR (Ref #40)
40
Part #90387-05X02-00
Screw, Pan Head (Ref #41)
41
Part #9850L-05012-00
Screw, Pan Head (Ref #41)
41
Part #9850L-05012-00
Screw, Pan Head (Ref #41)
41
Part #9850L-05012-00
Screw, Pan Head (Ref #41)
41
Part #9850L-05012-00
Направляющая протектора (Ref #42)
42
Part #5CH-F314F-00-00
Крышка шланга (Ref #43)
43
Part #5CH-F314E-00-00
Screw, Pan Head (Ref #44)
44
Part #9850L-05016-00
BOLT (Ref #45)
45
Part #9131L-05040-00
BOLT (Ref #45)
45
Part #9131L-05040-00
BOLT (Ref #45)
45
Part #9131L-05040-00
BOLT (Ref #45)
45
Part #9131L-05040-00
Направляющая протектора (Ref #46)
46
Part #5CH-F314G-00-00
Держатель кабеля (Ref #47)
47
Part #5CH-F3318-00-00
Крышка картера 2 (Ref #48)
48
Part #999-99999-99-00
Крышка картера 2 (Ref #48)
48
Part #999-99999-99-00
Крышка картера 2 (Ref #48)
48
Part #999-99999-99-00
Крышка картера 2 (Ref #48)
48
Part #999-99999-99-00
Washer, Plate (Ref #49)
49
Part #92990-08600-00
Washer, Plate (Ref #49)
49
Part #92990-06200-00
Washer, Plate (Ref #49)
49
Part #92907-06200-00
Болт специальный (Ref #50)
50
Part #5SE-F3394-00-00
Болт специальный (Ref #50)
50
Part #5SE-F3394-00-00
Болт специальный (Ref #50)
50
Part #5SE-F3394-00-00
Болт специальный (Ref #50)
50
Part #5SE-F3394-00-00
BOLT (Ref #51)
51
Part #97017-08016-00
BOLT (Ref #51)
51
Part #97017-08016-00
BOLT (Ref #51)
51
Part #97017-08016-00
BOLT (Ref #51)
51
Part #97017-08016-00
Nut, flange (Ref #52)
52
Part #95337-08600-00
Nut, flange (Ref #52)
52
Part #95337-08600-00
Nut, flange (Ref #52)
52
Part #95337-08600-00
Nut, flange (Ref #52)
52
Part #95337-08600-00
Гайка (Ref #52)
52
Part #997-80086-00-00
Гайка (Ref #52)
52
Part #997-80086-00-00
Гайка (Ref #52)
52
Part #997-80086-00-00
Гайка (Ref #52)
52
Part #997-80086-00-00
Guide, cable (Ref #53)
53
Part #5CH-F3389-00-00
