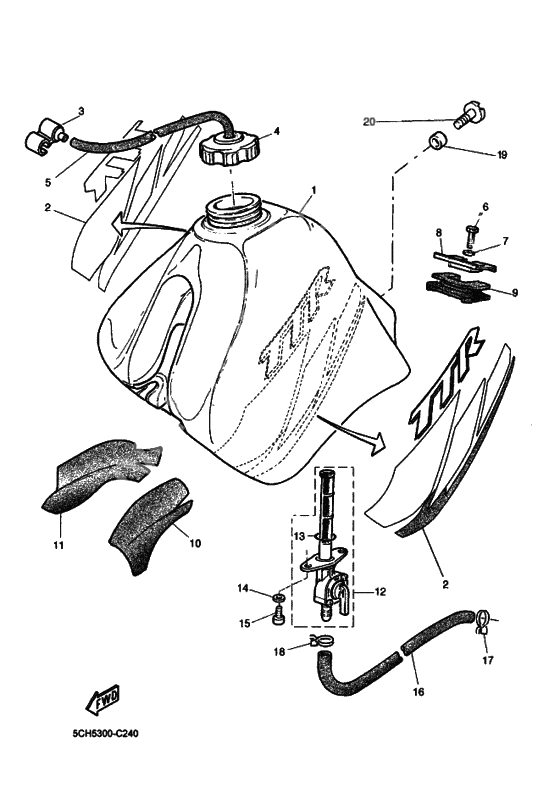

Tank fuel
Tank fuel
FUEL TANK COMP. (Ref #1)
1
Part #5CH-XF411-00-P3
Graphic Set (Ref #2)
2
Part #5CH-F4240-30-00
Graphic Set (Ref #2)
2
Part #5CH-F4240-30-00
Graphic Set (Ref #2)
2
Part #5CH-F4240-30-00
Graphic Set (Ref #2)
2
Part #5CH-F4240-30-00
Clamp 1 (Ref #3)
3
Part #5CH-F4135-00-00
Cap Asy (Ref #4)
4
Part #5CH-F4610-00-00
Pipe 2 (Ref #5)
5
Part #5CH-F4312-00-00
BOLT (Ref #6)
6
Part #9701L-06016-00
Washer, Plate (Ref #7)
7
Part #92995-06100-00
Washer, special (Ref #8)
8
Part #34X-24186-01-00
Дэмпфер соединения (Ref #9)
9
Part #4GV-F4182-00-00
Insulator, Fuel Tank 1 (Ref #10)
10
Part #5CH-F416F-00-00
Insulator, Fuel Tank 2 (Ref #11)
11
Part #5CH-F416G-00-00
Fuel Cock Assy 1 (Ref #12)
12
Part #5CH-F4500-01-00
Washer, Needle Valve (Ref #13)
13
Part #93210-118C7-00
Washer, Plate (Ref #14)
14
Part #902-02051-87-00
Screw, Pan Head (Ref #15)
15
Part #9850L-06014-00
Pipe, Fuel 1 (Ref #16)
16
Part #5CH-F4311-00-00
CLIP (Ref #17)
17
Part #90467-11832-00
CLIP (Ref #18)
18
Part #90467-12835-00
COLLAR (Ref #19)
19
Part #90387-06X09-00
Screw, Cap Nut (Ref #20)
20
Part #5CH-F4123-00-00
