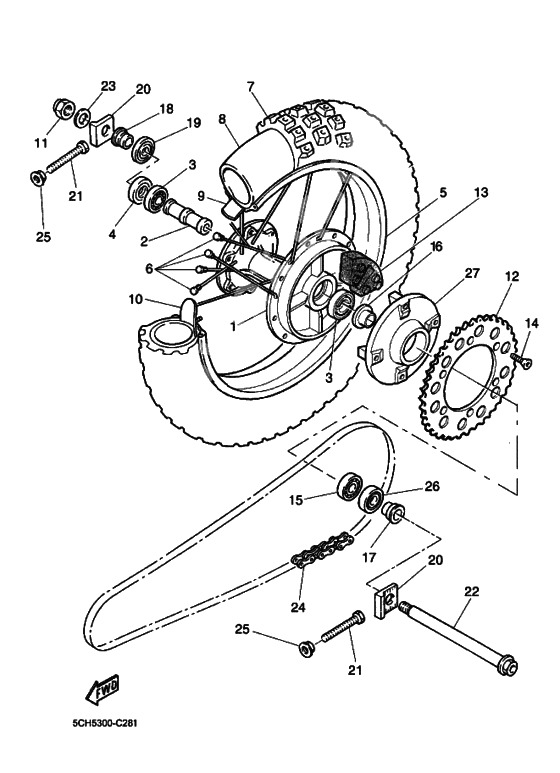

Rear wheel complete assy
Rear wheel complete assy
Hub, rear (Ref #1)
1
Part #4GV-F5311-10-00
Шайба, подшипник (Ref #2)
2
Part #4GV-F5317-00-00
BEARING (Ref #3)
3
Part #93306-004X8-00
BEARING (Ref #3)
3
Part #93306-004X8-00
BEARING (Ref #3)
3
Part #93306-004X8-00
BEARING (Ref #3)
3
Part #93306-004X8-00
Oil seal (Ref #4)
4
Part #93102-28867-00
RIM (Ref #5)
5
Part #94425-188A7-00
Спицы, комплект. (Ref #6)
6
Part #4GV-F5304-20-00
Крышка картера 2 (Ref #7)
7
Part #999-99999-99-00
Band, Rim (Ref #9)
9
Part #94314-18854-00
Шайба, подшипник (Ref #10)
10
Part #4GV-F5394-10-00
Nut, Self-Locking (Ref #11)
11
Part #901-85180-09-00
Sprocket, driven (Ref #12)
12
Part #4GV-F5447-00-00
DAMPER (Ref #13)
13
Part #5Y1-25364-00-00
BOLT (Ref #14)
14
Part #4GV-F5411-10-00
BEARING (Ref #15)
15
Part #93306-304X0-00
COLLAR (Ref #16)
16
Part #90387-208J8-00
Collar, Wheel (Ref #17)
17
Part #4GV-F5376-00-00
COLLAR (Ref #18)
18
Part #90387-2000B-00
Cover, Hub Dust (Ref #19)
19
Part #4V4-25367-00-00
Натяжитель цепи (Ref #20)
20
Part #3SP-25388-00-00
Натяжитель цепи (Ref #20)
20
Part #3SP-25388-00-00
Натяжитель цепи (Ref #20)
20
Part #3SP-25388-00-00
Натяжитель цепи (Ref #20)
20
Part #3SP-25388-00-00
Bolt (L=55 P=1.25) (Ref #21)
21
Part #90101-08777-00
Bolt (L=55 P=1.25) (Ref #21)
21
Part #90101-08777-00
Bolt (L=55 P=1.25) (Ref #21)
21
Part #90101-08777-00
Bolt (L=55 P=1.25) (Ref #21)
21
Part #90101-08777-00
Ось колеса (Ref #22)
22
Part #3XP-25381-00-00
Washer, Plate (Ref #23)
23
Part #90201-204M9-00
Цепь (Ref #24)
24
Part #945-6X131-14-00
Nut, flange (Ref #25)
25
Part #90179-08491-00
Nut, flange (Ref #25)
25
Part #90179-08491-00
Nut, flange (Ref #25)
25
Part #90179-08491-00
Nut, flange (Ref #25)
25
Part #90179-08491-00
Oil seal (Ref #26)
26
Part #93101-28828-00
Clutch, Hub (Ref #27)
27
Part #4GV-F5366-11-00
-
1190185-18104-00
Nut, Self-Locking
1Replaced by 901-85180-09-00 Доступно: Нет в наличии
