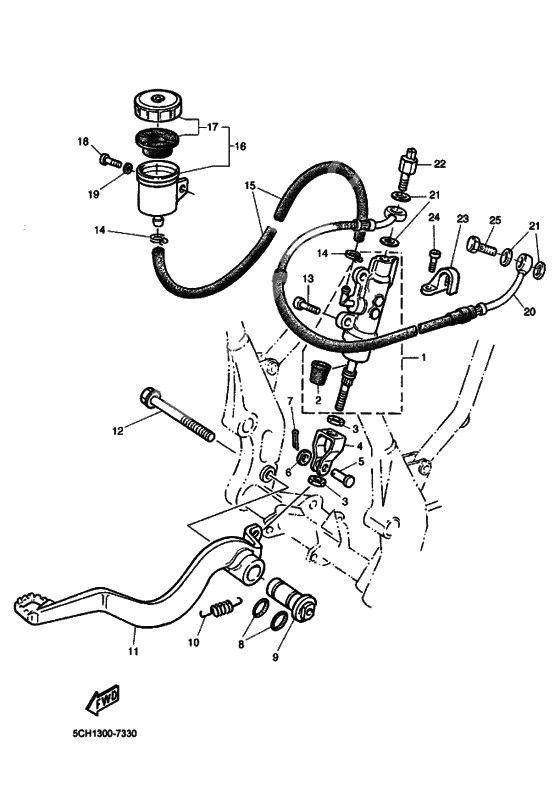

Rear master cylinder
Rear master cylinder
Rr. Master Cylinder Assy (Ref #1)
1
Part #4GV-F583V-00-00
Ботинок главного цилиндра (Ref #2)
2
Part #4GV-F5862-00-00
Nut, flange (Ref #3)
3
Part #9530L-08700-00
Nut, flange (Ref #3)
3
Part #9530L-08700-00
Nut, flange (Ref #3)
3
Part #9530L-08700-00
Nut, flange (Ref #3)
3
Part #9530L-08700-00
JOINT (Ref #4)
4
Part #4GV-F7222-00-00
Штифт, вилкообразный наконечник (Ref #5)
5
Part #90240-08124-00
Washer, Plate (Ref #6)
6
Part #90201-08083-00
Шплинт (Ref #7)
7
Part #91490-16020-00
RETAINER, MAGNETO BASE (Ref #8)
8
Part #93210-13016-00
COLLAR (Ref #9)
9
Part #4GV-F7213-01-00
Пружина натяжения (Ref #10)
10
Part #90506-18838-00
Pedal, Brake (Ref #11)
11
Part #4GV-F7200-02-00
BOLT (Ref #12)
12
Part #95817-10085-00
BOLT (Ref #13)
13
Part #4GV-F7217-00-00
CLIP (Ref #14)
14
Part #90467-11832-00
CLIP (Ref #14)
14
Part #90467-11832-00
CLIP (Ref #14)
14
Part #90467-11832-00
CLIP (Ref #14)
14
Part #90467-11832-00
Шланг резервуар (Ref #15)
15
Part #5CH-F5895-00-00
Reserve Tank Assy (Ref #16)
16
Part #3SH-F5804-00-00
Стакан резервуара (Ref #17)
17
Part #3SH-F5852-50-00
BOLT (Ref #18)
18
Part #9131M-06020-00
Washer, Plate (Ref #19)
19
Part #9290M-06600-00
Шланг, тормоз 2 (Ref #20)
20
Part #5CH-F5873-00-00
Washer, Plate (Ref #21)
21
Part #90201-10X12-00
Washer, Plate (Ref #21)
21
Part #90201-10X12-00
Washer, Plate (Ref #21)
21
Part #90201-10X12-00
Washer, Plate (Ref #21)
21
Part #90201-10X12-00
Стопорный переключатель (Ref #22)
22
Part #5JN-H2530-00-00
Держатель шланга тормоза 2 (Ref #23)
23
Part #2VM-25876-00-00
Screw, Tapping (Ref #24)
24
Part #90167-04814-00
Болт соединяющий (Ref #25)
25
Part #90401-10X00-00
