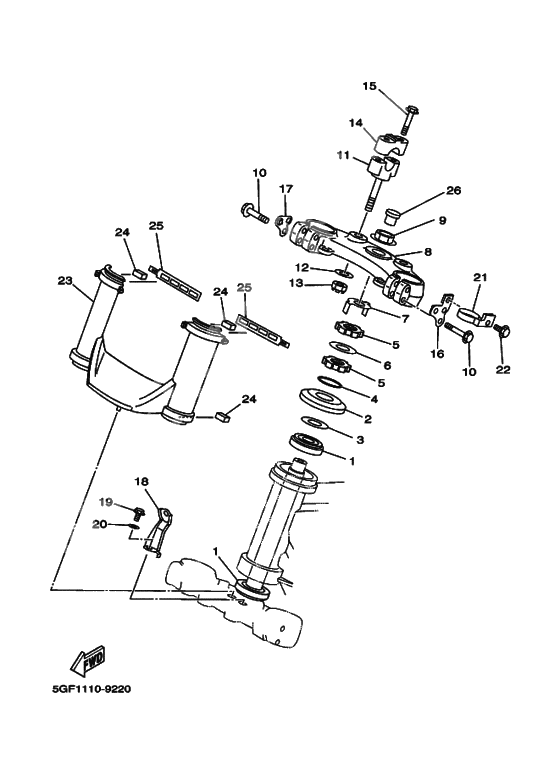

Steering
Steering
Bearing(4Ew) (Ref #1)
1
Part #93332-00078-00
Bearing(4Ew) (Ref #1)
1
Part #93332-00078-00
Bearing(4Ew) (Ref #1)
1
Part #93332-00078-00
Bearing(4Ew) (Ref #1)
1
Part #93332-00078-00
Крышка 2 (Ref #2)
2
Part #4GY-23416-00-00
Washer, Plate (Ref #3)
3
Part #90201-282R3-00
Washer, Plate (Ref #4)
4
Part #90201-284R9-00
Nut, flange (Ref #5)
5
Part #90179-28543-00
Nut, flange (Ref #5)
5
Part #90179-28543-00
Nut, flange (Ref #5)
5
Part #90179-28543-00
Nut, flange (Ref #5)
5
Part #90179-28543-00
Washer, Plate (Ref #6)
6
Part #90202-28216-00
Washer, special (Ref #7)
7
Part #4GY-23418-00-00
Crown, Handle (Ref #8)
8
Part #4RR-23435-00-00
Nut, flange (Ref #9)
9
Part #90179-24542-00
BOLT (Ref #10)
10
Part #95027-08040-00
BOLT (Ref #10)
10
Part #95027-08040-00
BOLT (Ref #10)
10
Part #95027-08040-00
BOLT (Ref #10)
10
Part #95027-08040-00
HOLDER, HANDLE LOWER (Ref #11)
11
Part #3SR-23442-01-00
Washer, Plate (Ref #12)
12
Part #92990-12200-00
Гайка U (Ref #13)
13
Part #95617-12100-00
Holder, Handle Upper (Ref #14)
14
Part #1E6-23441-10-35
BOLT (Ref #15)
15
Part #95024-08035-00
Подставка, освещение 1 (Ref #16)
16
Part #4RR-2831V-00-00
Стойка фонаря 2 (Ref #17)
17
Part #4RR-2832V-00-00
Stay, Headlight (Ref #18)
18
Part #4GY-23174-00-00
BOLT (Ref #19)
19
Part #97017-06012-00
Washer, Plate (Ref #20)
20
Part #92907-06600-00
Направляющая кабеля (Ref #21)
21
Part #4GY-23389-00-00
BOLT (Ref #22)
22
Part #90105-05361-00
Protector (Ref #23)
23
Part #4GY-23472-20-00
Band (Ref #25)
25
Part #4GY-23192-00-00
Band (Ref #25)
25
Part #4GY-23192-00-00
Band (Ref #25)
25
Part #4GY-23192-00-00
Band (Ref #25)
25
Part #4GY-23192-00-00
PLATE, SEAL DAMPER (Ref #26)
26
Part #3K7-84154-10-00
