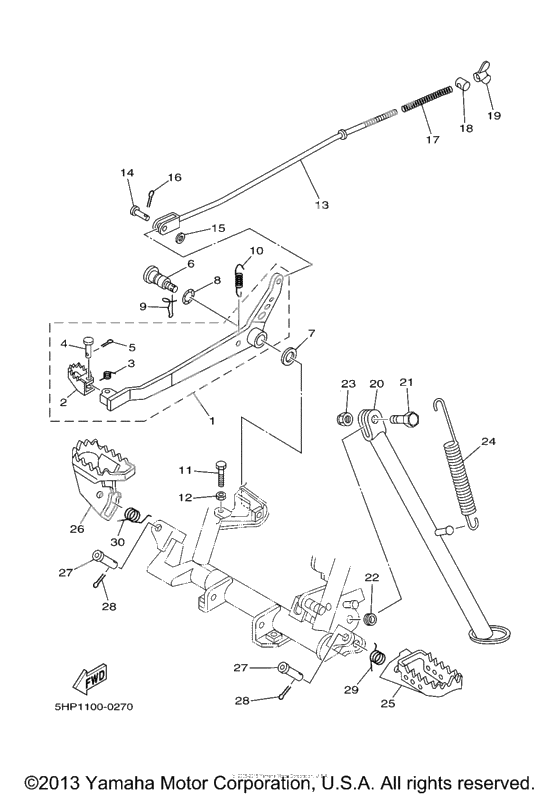

Stand footrest
Stand footrest
Pedal, Brake (Ref #1)
1
Part #5HP-27200-00-00
Pedal, Brake (Ref #2)
2
Part #55V-27242-00-00
Spring, Pilot Adjusting (Ref #3)
3
Part #90508-14352-00
. PIN (Ref #4)
4
Part #91701-06022-00
SHAFT (Ref #6)
6
Part #2CC-F7261-00-00
Washer, Plate (Ref #7)
7
Part #90201-105J4-00
Шайба пружинная (Ref #8)
8
Part #90206-14001-00
CLIP (Ref #9)
9
Part #90468-20196-00
Пружина натяжения (Ref #10)
10
Part #90506-16372-00
Screw, With Washer (Ref #11)
11
Part #97017-06016-00
Nut, flange (Ref #12)
12
Part #95317-06700-00
Rod, brake (Ref #13)
13
Part #5HP-27231-10-00
Штифт, вилкообразный наконечник (Ref #14)
14
Part #90240-06076-00
Washer, Plate (Ref #15)
15
Part #92907-06200-00
. PIN (Ref #16)
16
Part #91490-20025-00
. PIN (Ref #16)
16
Part #91490-20015-00
Spring, Compression (Ref #17)
17
Part #90501-10245-00
PIN (Ref #18)
18
Part #90249-12008-00
Nut, flange (Ref #19)
19
Part #90179-06411-00
Stand, Side (Ref #20)
20
Part #5HP-27311-10-00
Stand, Side (Ref #20)
20
Part #5HP-27311-00-00
BOLT (Ref #21)
21
Part #90101-10030-00
Втулка (Ref #22)
22
Part #90387-10003-00
Гайка, самоблокирующаяся (Ref #23)
23
Part #90185-10037-00
Пружина натяжения (Ref #24)
24
Part #90506-35474-00
Footrest 1 (Ref #25)
25
Part #4DA-27411-00-00
Footrest 2 (Ref #26)
26
Part #4GY-27421-00-00
. PIN (Ref #27)
27
Part #90240-10117-00
. PIN (Ref #27)
27
Part #90240-10117-00
. PIN (Ref #27)
27
Part #90240-10117-00
. PIN (Ref #27)
27
Part #90240-10117-00
. PIN (Ref #28)
28
Part #91490-25020-00
. PIN (Ref #28)
28
Part #91490-25020-00
. PIN (Ref #28)
28
Part #91490-25020-00
. PIN (Ref #28)
28
Part #91490-25020-00
Spring, Pilot Adjusting (Ref #29)
29
Part #90508-28777-00
Spring, Pilot Adjusting (Ref #30)
30
Part #90508-284A7-00
