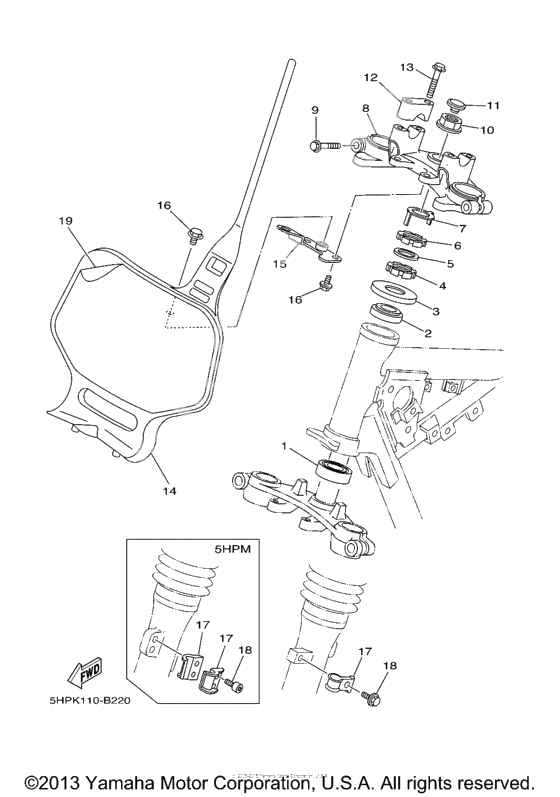

Steering
Steering
BEARING (Ref #1)
1
Part #93332-00079-00
BEARING (Ref #2)
2
Part #93399-99949-00
Крышка 2 (Ref #3)
3
Part #5HP-23416-00-00
Nut, flange (Ref #4)
4
Part #90179-25003-00
Nut, flange (Ref #4)
4
Part #901-79250-04-00
Washer, Plate (Ref #5)
5
Part #90202-26142-00
Nut, flange (Ref #6)
6
Part #901-79258-11-00
Washer, special (Ref #7)
7
Part #3YF-23418-00-00
Crown, Handle (Ref #8)
8
Part #5HP-23435-00-00
BOLT (Ref #9)
9
Part #95024-08035-00
Nut, flange (Ref #10)
10
Part #90179-22005-00
CAP (Ref #11)
11
Part #5HP-2319U-00-00
Holder, Handle Upper (Ref #12)
12
Part #1E6-23441-10-35
Plate, number (Ref #14)
14
Part #4ES-23485-20-00
Stay, Plate (Ref #15)
15
Part #5HP-23486-00-00
BOLT (Ref #18)
18
Part #95817-06012-00
BOLT (Ref #18)
18
Part #95817-06012-00
BOLT (Ref #18)
18
Part #95817-06012-00
BOLT (Ref #18)
18
Part #95817-06012-00
BOLT (Ref #18)
18
Part #91317-06016-00
BOLT (Ref #18)
18
Part #91317-06016-00
BOLT (Ref #18)
18
Part #91317-06016-00
BOLT (Ref #18)
18
Part #91317-06016-00
Графика (Ref #19)
19
Part #4ES-2339E-00-00
