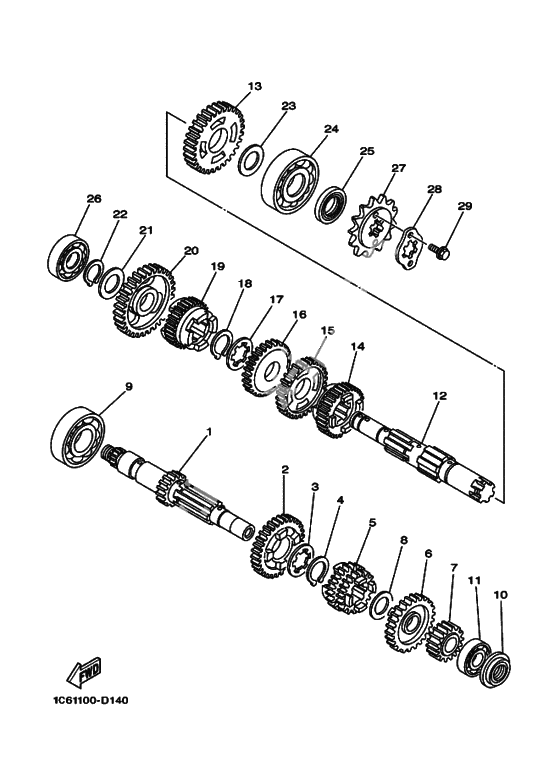

Трансмиссия
Трансмиссия
Axle, Main (13T) (Ref #1)
1
Part #1C6-E7411-00-00
Шестерня, 4-ая (Ref #2)
2
Part #5MP-17161-00-00
Шайба (Ref #3)
3
Part #90209-17285-00
Circlip (Ref #4)
4
Part #93410-20038-00
Gear, 3Rd Pinion (Ref #5)
5
Part #1KH-17131-01-00
Gear, 5Th Pinion (27T) (Ref #6)
6
Part #5MP-17151-00-00
Gear, 2Nd Pinion (18T) (Ref #7)
7
Part #17T-17121-00-00
Washer, Plate (Ref #8)
8
Part #90201-164K2-00
BEARING (Ref #9)
9
Part #93306-20461-00
BEARING (Ref #9)
9
Part #93306-204Y7-00
Oil seal (Ref #10)
10
Part #93101-15101-00
BEARING (Ref #11)
11
Part #93306-20211-00
Ось (Ref #12)
12
Part #1C6-E7402-00-00
Шестерня, 2-ого колеса) (Ref #13)
13
Part #17T-17221-01-00
Gear, 5Th Wheel (25T) (Ref #14)
14
Part #5MP-17251-00-00
Шестерня, 3-го колеса (Ref #15)
15
Part #4VW-E7231-01-00
Gear, 4Th Wheel (Ref #16)
16
Part #17T-17241-03-00
Шайба (Ref #17)
17
Part #90209-18208-00
Circlip (Ref #18)
18
Part #93410-22039-00
Gear, 6Th Wheel (23T) (Ref #19)
19
Part #5MP-17261-00-00
Gear, 1St Wheel (38T) (Ref #20)
20
Part #5BT-17211-00-00
Washer, Plate (Ref #21)
21
Part #90201-17257-00
Circlip (Ref #22)
22
Part #93410-17X00-00
Washer, Plate (Ref #23)
23
Part #90201-203E7-00
Bearing (Ref #24)
24
Part #933-06304-YP-00
Oil seal (Ref #25)
25
Part #93102-20004-00
BEARING (Ref #26)
26
Part #93306-20332-00
Sprocket, Drive (13T) (Ref #27)
27
Part #93832-13164-00
Holder, Sprocket (Ref #28)
28
Part #5H0-17456-00-00
BOLT (Ref #29)
29
Part #97017-06010-00
-
284AN-E7456-00-00
Holder, Sprocket
1Replaced by 5H0-17456-00-00 Доступно: Нет в наличии
