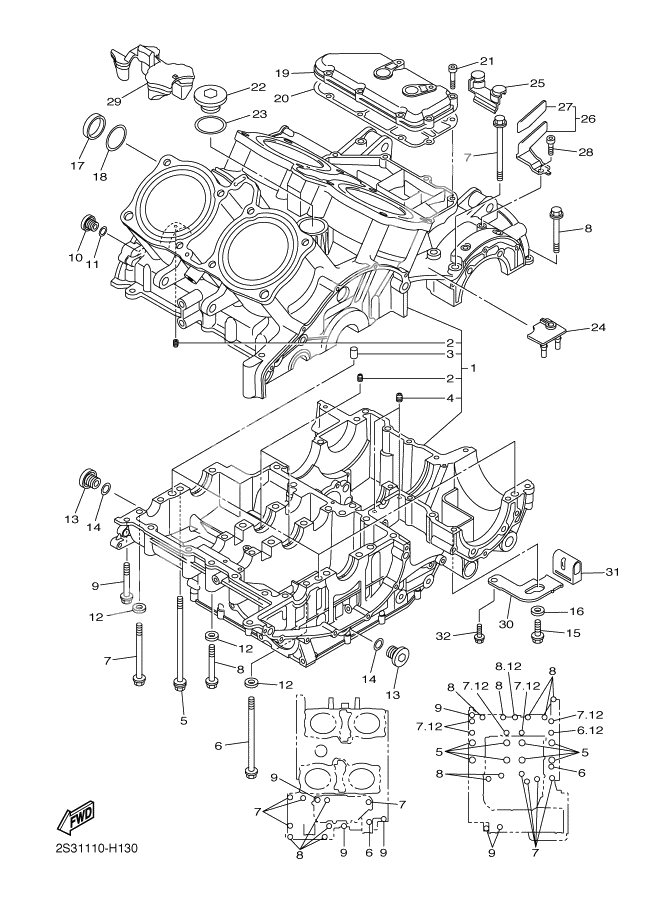

CRANK CASE
CRANK CASE
Crankcase Assy (Ref #1)
1
Part #2S3-15100-11
. NOZZLE 1 (Ref #2)
2
Part #4H7-15138-00
. NOZZLE 1 (Ref #2)
2
Part #4H7-15138-00
. NOZZLE 1 (Ref #2)
2
Part #4H7-15138-00
. NOZZLE 1 (Ref #2)
2
Part #4H7-15138-00
Pin, Dowel (Ref #3)
3
Part #99530-10014
. ノズル 2 (Ref #4)
4
Part #2S3-15148-00
PLUG, STRAIGHT SCREW (Ref #10)
10
Part #90340-14011
O-Ring (Ref #11)
11
Part #93210-14369
PLUG (Ref #13)
13
Part #4H7-15189-00
PLUG (Ref #13)
13
Part #4H7-15189-00
PLUG (Ref #13)
13
Part #4H7-15189-00
PLUG (Ref #13)
13
Part #4H7-15189-00
O-RING (Ref #14)
14
Part #93210-207A0
O-RING (Ref #14)
14
Part #93210-207A0
O-RING (Ref #14)
14
Part #93210-207A0
O-RING (Ref #14)
14
Part #93210-207A0
Bolt, Flange (Ref #15)
15
Part #95022-08016
GASKET (Ref #16)
16
Part #90430-08119
Pipe, water (Ref #17)
17
Part #2S3-12564-00
O-RING (Ref #18)
18
Part #93210-34504
COVER (Ref #19)
19
Part #2S3-15413-00
GASKET, 2 (Ref #20)
20
Part #2S3-15463-00
Bolt, Hexagon Socket Head (Ref #21)
21
Part #91312-06025
PLUG, STRAIGHT SCREW (Ref #22)
22
Part #90340-36003
O-RING (Ref #23)
23
Part #93210-35001
Cover, oil pump (Ref #24)
24
Part #2S3-15416-00
GROMMET (Ref #25)
25
Part #2S3-15486-00
CLAMP (Ref #26)
26
Part #2S3-81328-00
. シート, 6 (Ref #27)
27
Part #2S3-1471P-00
Bolt, Hexagon Socket Head (Ref #28)
28
Part #90110-06193
カバ-,チエ-ンケ-ス 2 (Ref #29)
29
Part #2S3-15428-00
PLATE (Ref #30)
30
Part #2S3-21329-00
DAMPER (Ref #31)
31
Part #2S3-2139X-00
Bolt, Flange (Ref #32)
32
Part #90105-06080
