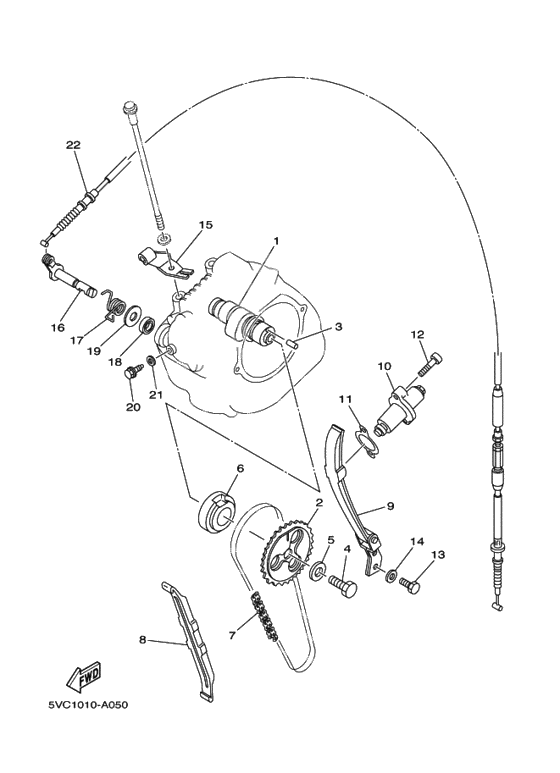

Counter Shaft, Chain
Counter Shaft, Chain
Распредвал 1 (Ref #1)
1
Part #36X-12171-00-00
Звездочка, цепь кулака (Ref #2)
2
Part #1KH-12176-00-00
Pin, Dowel (Ref #3)
3
Part #93604-10011-00
BOLT (Ref #4)
4
Part #90101-10303-00
Washer, Plate (Ref #5)
5
Part #90201-10774-00
COLLAR (Ref #6)
6
Part #90387-255F3-00
Цепь (Ref #7)
7
Part #94580-41104-00
Guide, Stopper 1 (Ref #8)
8
Part #5H0-12231-00-00
Guide, Stopper 2 (Ref #9)
9
Part #5VC-12241-00-00
Tensioner Assy (Ref #10)
10
Part #2LN-12210-10-00
Washer, Needle Valve (Ref #11)
11
Part #4FM-12213-00-00
BOLT (Ref #12)
12
Part #90105-060A0-00
Screw, With Washer (Ref #13)
13
Part #97017-06016-00
Washer, Plate (Ref #14)
14
Part #92907-06600-00
Bracket, decomp (Ref #15)
15
Part #36X-12283-00-00
Cam, Decompression (Ref #16)
16
Part #36X-12288-01-00
Spring, Pilot Adjusting (Ref #17)
17
Part #90508-16428-00
Oil seal (Ref #18)
18
Part #931-02123-21-00
Washer, Plate (Ref #19)
19
Part #90201-12588-00
BOLT (Ref #20)
20
Part #90109-06418-00
Washer, Needle Valve (Ref #21)
21
Part #90430-06014-00
Cable, Decompression (Ref #22)
22
Part #5VC-12292-00-00
