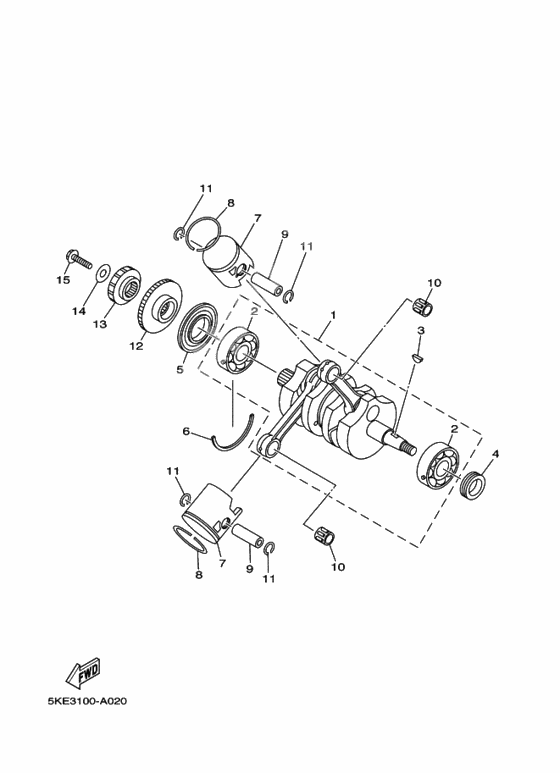

Crankshaft. piston
Crankshaft. piston
Вал коленчатый (Ref #1)
1
Part #5KE-11400-10-00
BEARING (Ref #2)
2
Part #93306-30572-00
BEARING (Ref #2)
2
Part #93306-30572-00
BEARING (Ref #2)
2
Part #93306-30572-00
BEARING (Ref #2)
2
Part #93306-30572-00
KEY,WOODRUFF (Ref #3)
3
Part #90280-04051-00
Oil seal (Ref #4)
4
Part #93102-25438-00
Oil seal (Ref #5)
5
Part #93102-35030-00
Стопор (полукольцо) (Ref #6)
6
Part #278-17424-01-00
Piston (std) (Ref #7)
7
Part #5KE-11631-20-C0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-C0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-C0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-C0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-B0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-B0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-B0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-B0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-A0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-A0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-A0
Piston (std) (Ref #7)
7
Part #5KE-11631-20-A0
Кольцо поршневое (Ref #8)
8
Part #4JT-11611-11-00
Кольцо поршневое (Ref #8)
8
Part #4JT-11611-11-00
Кольцо поршневое (Ref #8)
8
Part #4JT-11611-11-00
Кольцо поршневое (Ref #8)
8
Part #4JT-11611-11-00
Pin, piston (Ref #9)
9
Part #4XM-11633-01-00
Pin, piston (Ref #9)
9
Part #4XM-11633-01-00
Pin, piston (Ref #9)
9
Part #4XM-11633-01-00
Pin, piston (Ref #9)
9
Part #4XM-11633-01-00
BEARING (Ref #10)
10
Part #93310-31510-00
BEARING (Ref #10)
10
Part #93310-31510-00
BEARING (Ref #10)
10
Part #93310-31510-00
BEARING (Ref #10)
10
Part #93310-31510-00
Ведущая шестерня (Ref #12)
12
Part #5KE-11536-00-00
GEAR, PRIMARY DRIVE (Ref #13)
13
Part #5KE-16111-00-00
Washer, Plate (Ref #14)
14
Part #90201-10144-00
Болт (Ref #15)
15
Part #90105-10445-00
