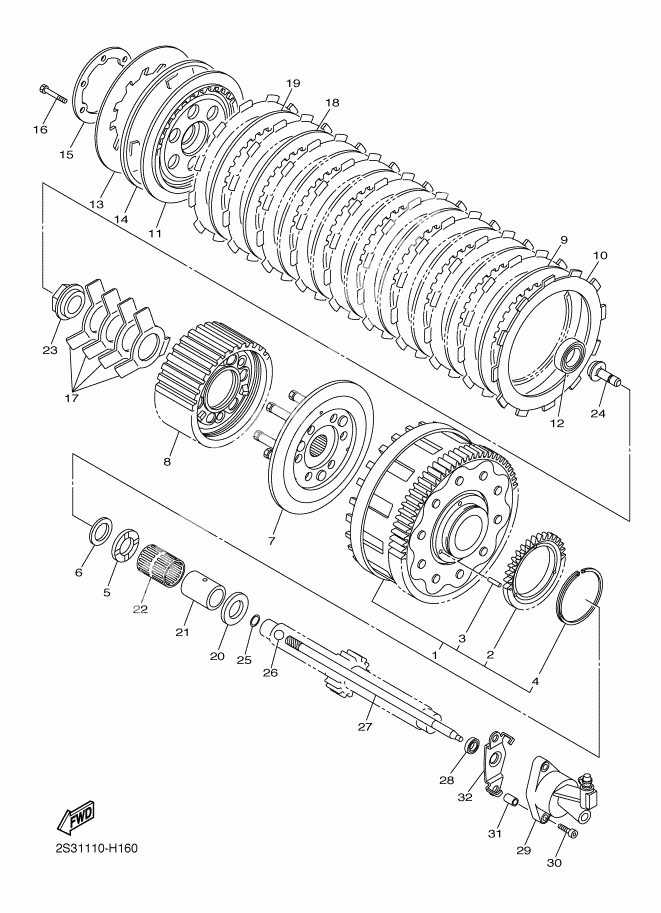

Сцепление
Сцепление
PRIMARY DRIVEN GEAR COMP. (Ref #1)
1
Part #2S3-16150-00
. GEAR, PUMP DRIVE (Ref #2)
2
Part #2S3-13324-00
Pin, Dowel (Ref #3)
3
Part #93604-16092
. CIRCLIP (Ref #4)
4
Part #93440-57M01
PLATE, THRUST 1 (Ref #5)
5
Part #4B1-16154-00
Washer, conical spring (Ref #6)
6
Part #90208-25002
PRESSURE PLATE ASSY 2 (Ref #7)
7
Part #2S3-16360-00
CLUTCH BOSS ASSY (Ref #8)
8
Part #2S3-16370-00
PLATE, CLUTCH 2 (Ref #9)
9
Part #2H7-16325-00
Plate, Friction (Ref #10)
10
Part #5YU-16321-00
PLATE, PRESSURE 1 (Ref #11)
11
Part #2S3-16351-00
BEARING (Ref #12)
12
Part #93306-00304
SPRING, CLUTCH 2 (Ref #13)
13
Part #5YU-16334-00
HOUSING, SPRING (Ref #14)
14
Part #36Y-16335-00
プレ-ト,プレツシヤ- 3 (Ref #15)
15
Part #2S3-16353-00
BOLT (Ref #16)
16
Part #97002-06025
SPRING, ABSORBER VALVE (Ref #17)
17
Part #2S3-16539-00
PLATE, CLUTCH 1 (Ref #18)
18
Part #2H7-16324-00
PLATE, CLUTCH 1 (Ref #19)
19
Part #47X-16324-00
プレート,スラスト 2 (Ref #20)
20
Part #5VY-16164-00
COLLAR (Ref #21)
21
Part #90387-25026
BEARING (Ref #22)
22
Part #93310-33559
NUT, LOCK (Ref #23)
23
Part #2S3-16377-00
ROD, PUSH 1 (Ref #24)
24
Part #4KG-16356-00
O-RING (Ref #25)
25
Part #93210-06632
Ball (Ref #26)
26
Part #93511-32017
ROD, PUSH 2 (Ref #27)
27
Part #2S3-16357-00
Oil seal (Ref #28)
28
Part #93102-08008
PUSH LEVER COMP. (Ref #29)
29
Part #2S3-16381-00
Bolt, Hexagon Socket Head (Ref #30)
30
Part #90110-06246
Pin, Dowel (Ref #31)
31
Part #99530-08012
PLATE (Ref #32)
32
Part #2S3-15645-00
