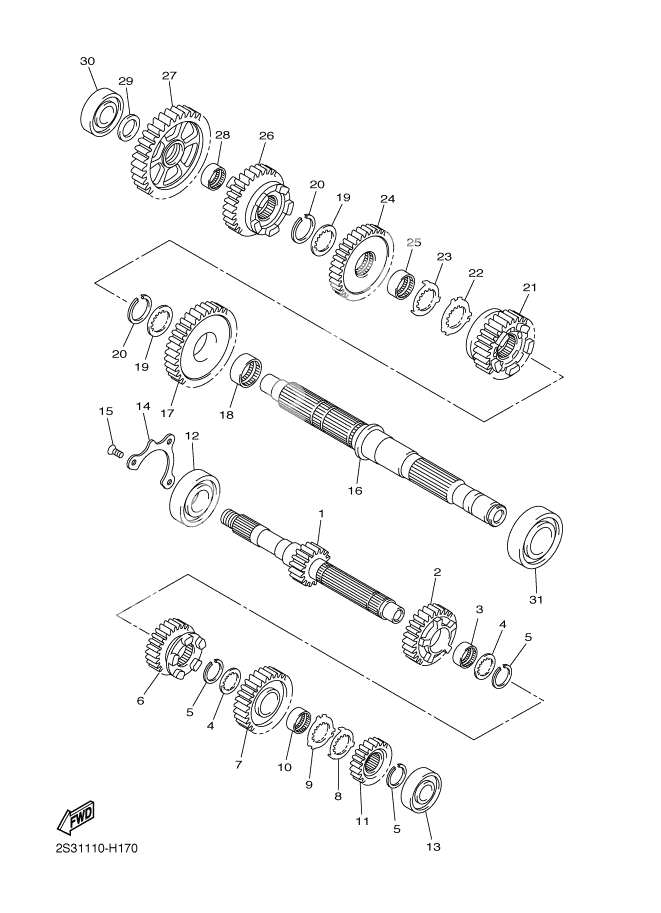

Трансмиссия
Трансмиссия
アクスル,メイン (16T) (Ref #1)
1
Part #2S3-17411-00
ギヤ,フオ-スピニオン (26T) (Ref #2)
2
Part #2S3-17141-10
COLLAR (Ref #3)
3
Part #90387-28003
WASHER (Ref #4)
4
Part #90209-25011
WASHER (Ref #4)
4
Part #90209-25011
WASHER (Ref #4)
4
Part #90209-25011
WASHER (Ref #4)
4
Part #90209-25011
ギア,サ-ドピニオン (25T) (Ref #6)
6
Part #2S3-17131-01
ギヤ,フイフスピニオン (31T) (Ref #7)
7
Part #2S3-17151-01
WASHER, CLAW (Ref #8)
8
Part #90214-25003
WASHER, CLAW (Ref #9)
9
Part #90214-25004
COLLAR (Ref #10)
10
Part #90387-25025
ギヤ,セカンドピニオン (21T) (Ref #11)
11
Part #2S3-17121-00
BEARING (Ref #12)
12
Part #93306-30610
BEARING (Ref #13)
13
Part #93306-37214
Plate, Bearing Cover (Ref #14)
14
Part #2S3-15383-00
Screw, Countersunk (Ref #15)
15
Part #90151-06024
DRIVE AXLE ASSY (Ref #16)
16
Part #2S3-17402-00
GEAR, 2ND WHEEL (38T) (Ref #17)
17
Part #2S3-17221-00
COLLAR (Ref #18)
18
Part #90387-3311C
WASHER (Ref #19)
19
Part #90209-30344
WASHER (Ref #19)
19
Part #90209-30344
WASHER (Ref #19)
19
Part #90209-30344
WASHER (Ref #19)
19
Part #90209-30344
Circlip (Ref #20)
20
Part #93440-32063
Circlip (Ref #20)
20
Part #93440-32063
Circlip (Ref #20)
20
Part #93440-32063
Circlip (Ref #20)
20
Part #93440-32063
GEAR, 5TH WHEEL (29T) (Ref #21)
21
Part #2S3-17251-01
WASHER (Ref #22)
22
Part #90209-30345
WASHER (Ref #23)
23
Part #90209-30343
GEAR, 3RD WHEEL (35T) (Ref #24)
24
Part #2S3-17231-00
COLLAR (Ref #25)
25
Part #90387-3310V
GEAR, 4TH WHEEL (29T) (Ref #26)
26
Part #2S3-17241-10
ギヤ,フア-ストホイ-ル (38T) (Ref #27)
27
Part #2S3-17211-00
COLLAR (Ref #28)
28
Part #90387-25008
Washer, Plate (Ref #29)
29
Part #90201-224L4
BEARING (Ref #31)
31
Part #93306-20714
