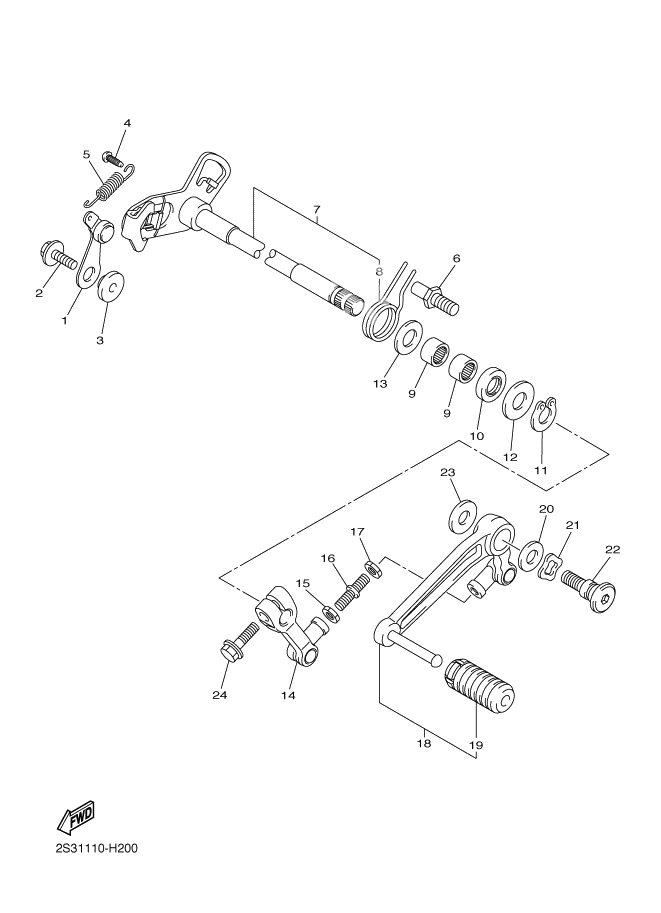

SHIFT SHAFT
SHIFT SHAFT
Stopper Lever Assy (Ref #1)
1
Part #2S3-18140-00
Screw, With Washer (Ref #2)
2
Part #90159-06027
SPACER (Ref #3)
3
Part #4NX-18175-00
HOOK, SPRING (Ref #4)
4
Part #1321634600
Spring, Tension (Ref #5)
5
Part #90506-15002
STOPPER, SCREW (Ref #6)
6
Part #1D7-18127-00
Shift Shaft Assy (Ref #7)
7
Part #2S3-18101-02
. SPRING, TORSION (Ref #8)
8
Part #90508-32141
BEARING (Ref #9)
9
Part #93317-11295
BEARING (Ref #9)
9
Part #93317-11295
BEARING (Ref #9)
9
Part #93317-11295
BEARING (Ref #9)
9
Part #93317-11295
OIL SEAL (SD 12-22-5 HS) (Ref #10)
10
Part #93102-12106
Circlip (Ref #11)
11
Part #99002-10600
WASHER, PLATE (Ref #12)
12
Part #90201-12575
Washer, Plate (Ref #13)
13
Part #90201-127E1
Arm, Shift (Ref #14)
14
Part #2S3-18112-00
NUT (Ref #15)
15
Part #95304-06700
ROD, SHIFT 2 (Ref #16)
16
Part #2S3-18115-00
NUT(COUNTER CLOCKWISE) (Ref #17)
17
Part #90170-06228
Shift Pedal Assy (Ref #18)
18
Part #2S3-18110-00
. COVER, SHIFT PEDAL (Ref #19)
19
Part #2S3-18113-00
Washer, Plate (Ref #20)
20
Part #90201-12013
Washer, Wave (Ref #21)
21
Part #90206-12074
Bolt (Ref #22)
22
Part #2S3-27217-00
WASHER, PLATE (Ref #23)
23
Part #90201-080H1
Bolt, Flange (Ref #24)
24
Part #95022-06020
