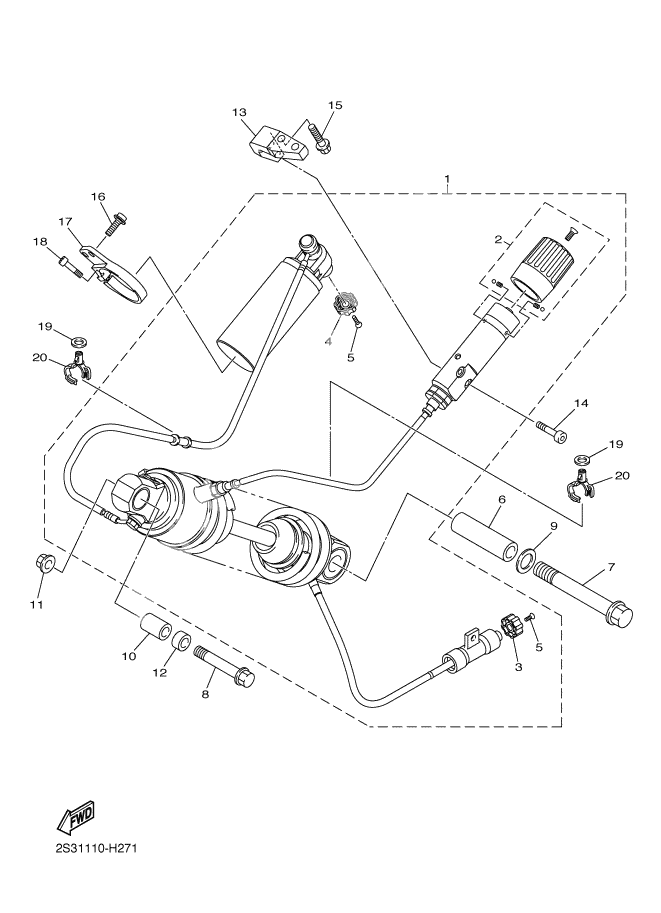

REAR SUSPENSION
REAR SUSPENSION
SHOCK ABSORBER ASSY, REAR (Ref #1)
1
Part #2S3-22210-20
. リペアキツト (Ref #2)
2
Part #2S3-28130-09
. . KNOB (TEN) (Ref #3)
3
Part #5JW-2319W-00
. ノブ (COMP) (Ref #4)
4
Part #5EA-22464-00
. SCREW, OVAL HEAD (Ref #5)
5
Part #98680-03008
. SCREW, OVAL HEAD (Ref #5)
5
Part #98680-03008
. SCREW, OVAL HEAD (Ref #5)
5
Part #98680-03008
. SCREW, OVAL HEAD (Ref #5)
5
Part #98680-03008
COLLAR (Ref #6)
6
Part #90387-14013
Bolt, Flange (Ref #7)
7
Part #90105-14004
Bolt, Flange (Ref #8)
8
Part #90105-10402
WASHER, PLATE (Ref #9)
9
Part #90201-16022
COLLAR (Ref #10)
10
Part #90387-1012A
Nut, U Flange (Ref #11)
11
Part #95607-10200
Bush, Solid (Ref #12)
12
Part #90380-10005
BRACKET (Ref #13)
13
Part #2S3-27332-00
Bolt, Hexagon Socket Head (Ref #14)
14
Part #91314-05025
Bolt, Flange (Ref #15)
15
Part #90105-06148
Bolt, Hexagon Socket Head (Ref #16)
16
Part #90110-06390
BRACKET (Ref #17)
17
Part #2S3-27333-00
Bolt, Hexagon Socket Head (Ref #18)
18
Part #91314-05020
WASHER, PLATE (Ref #19)
19
Part #90201-06105
WASHER, PLATE (Ref #19)
19
Part #90201-06105
WASHER, PLATE (Ref #19)
19
Part #90201-06105
WASHER, PLATE (Ref #19)
19
Part #90201-06105
Clamp (Ref #20)
20
Part #90464-18002
Clamp (Ref #20)
20
Part #90464-18002
Clamp (Ref #20)
20
Part #90464-18002
Clamp (Ref #20)
20
Part #90464-18002
