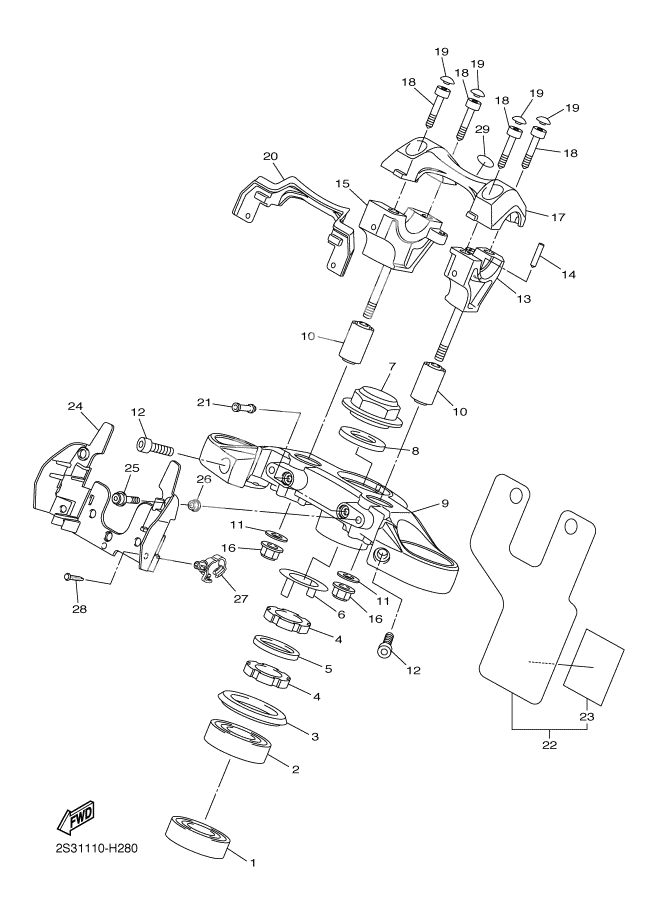

STEERING
STEERING
BEARING (Ref #1)
1
Part #93332-00008
BEARING (Ref #2)
2
Part #93332-00068
Cover, Ball Race 2 (Ref #3)
3
Part #4EW-23416-00
NUT (Ref #4)
4
Part #90179-28011
NUT (Ref #4)
4
Part #90179-28011
NUT (Ref #4)
4
Part #90179-28011
NUT (Ref #4)
4
Part #90179-28011
Washer, Plate (Ref #5)
5
Part #90202-28216
Washer, special (Ref #6)
6
Part #4GY-23418-00
NUT (Ref #7)
7
Part #90179-22009
Washer, Plate (Ref #8)
8
Part #90201-22018
Crown, Handle (Ref #9)
9
Part #2S3-23435-00
. ホルダ,ダンパ (Ref #10)
10
Part #3VD-23434-00
. ホルダ,ダンパ (Ref #10)
10
Part #3VD-23434-00
. ホルダ,ダンパ (Ref #10)
10
Part #3VD-23434-00
. ホルダ,ダンパ (Ref #10)
10
Part #3VD-23434-00
WASHER, PLATE (Ref #11)
11
Part #90201-10626
WASHER, PLATE (Ref #11)
11
Part #90201-10626
WASHER, PLATE (Ref #11)
11
Part #90201-10626
WASHER, PLATE (Ref #11)
11
Part #90201-10626
Bolt, Hexagon Socket Head (Ref #12)
12
Part #91314-08030
Bolt, Hexagon Socket Head (Ref #12)
12
Part #91314-08030
Bolt, Hexagon Socket Head (Ref #12)
12
Part #91314-08030
Bolt, Hexagon Socket Head (Ref #12)
12
Part #91314-08030
HOLDER (Ref #13)
13
Part #2S3-23857-01
Pin, Spring (Ref #14)
14
Part #91609-50020
HOLDER 2 (Ref #15)
15
Part #2S3-23867-01
NUT, S/L FLANGE (Ref #16)
16
Part #95602-10200
NUT, S/L FLANGE (Ref #16)
16
Part #95602-10200
NUT, S/L FLANGE (Ref #16)
16
Part #95602-10200
NUT, S/L FLANGE (Ref #16)
16
Part #95602-10200
Holder, Handle Upper (Ref #17)
17
Part #2S3-23441-00
DAMPER (Ref #20)
20
Part #2S3-23465-00
SPACER (Ref #21)
21
Part #2S3-23448-00
PROTECTER COMP., 1 (Ref #22)
22
Part #2S3-2314H-00
. パツチ (Ref #23)
23
Part #2S3-2317A-00
Guide, cable (Ref #24)
24
Part #2S3-23389-00
Bolt, Hexagon Socket Head (Ref #25)
25
Part #90110-06025
Collar (Ref #26)
26
Part #90387-06210
Clamp (Ref #27)
27
Part #90464-18002
RIVET (Ref #28)
28
Part #90269-03002
. TUNING FORK MARK (Ref #29)
29
Part #5GT-2836B-00
