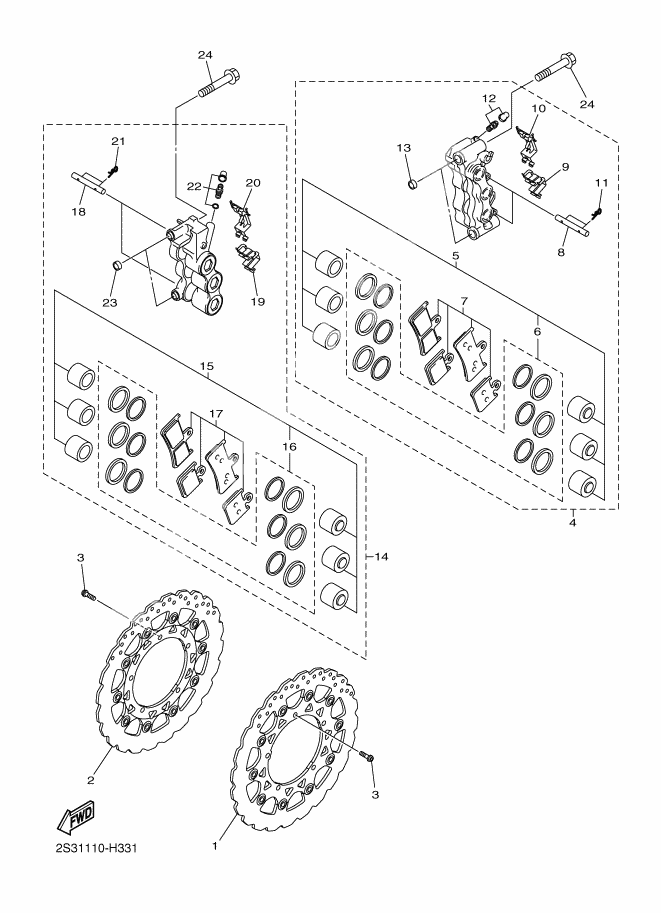

FRONT BRAKE CALLIPER
FRONT BRAKE CALLIPER
DISK BRAKE ASSY (Ref #1)
1
Part #2S3-2581T-00
DISK BRAKE ASSY (RIGHT) (Ref #2)
2
Part #2S3-2581U-00
SCREW (Ref #3)
3
Part #90149-06132
SCREW (Ref #3)
3
Part #90149-06132
SCREW (Ref #3)
3
Part #90149-06132
SCREW (Ref #3)
3
Part #90149-06132
CALIPER ASSY (LEFT) (Ref #4)
4
Part #4C8-2580T-10
. PISTON ASSY, CALIPER (Ref #5)
5
Part #4C8-25802-00
. . CALIPER SEAL KIT (Ref #6)
6
Part #4C8-25803-00
. BRAKE PAD KIT (Ref #7)
7
Part #4C8-25805-00
. PIN, PAD (Ref #8)
8
Part #4SV-25924-00
. SUPPORT, PAD (Ref #9)
9
Part #4C8-25919-00
. SUPPORT, PAD (Ref #10)
10
Part #2S3-25919-10
. CLIP (Ref #11)
11
Part #3GM-25925-00
. BLEED SCREW KIT (Ref #12)
12
Part #1J3-W0048-00
. ピン,ノツク (Ref #13)
13
Part #5VY-2583B-00
CALIPER ASSY (RIGHT) (Ref #14)
14
Part #2S3-2580U-00
. PISTON ASSY, CALIPER (Ref #15)
15
Part #4C8-W0057-00
. . CALIPER SEAL KIT (Ref #16)
16
Part #4C8-W0047-00
. BRAKE PAD KIT (Ref #17)
17
Part #4C8-W0045-00
. BLEED SCREW KIT (Ref #22)
22
Part #5VS-W0048-00
Bolt, Flange (Ref #24)
24
Part #90105-10397
Bolt, Flange (Ref #24)
24
Part #90105-10397
Bolt, Flange (Ref #24)
24
Part #90105-10397
Bolt, Flange (Ref #24)
24
Part #90105-10397
