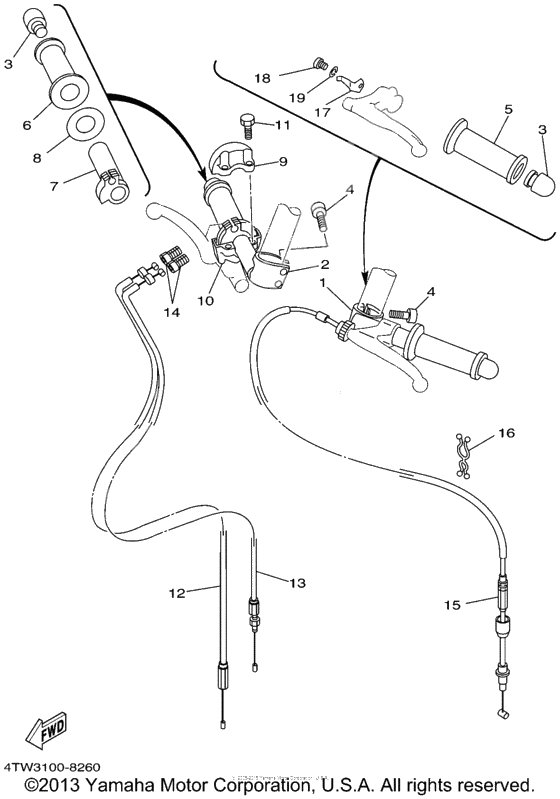

Steering handle cable
Steering handle cable
Handlebar (Left) (Ref #1)
1
Part #3YL-26121-00-00
Handlebar (Right) (Ref #2)
2
Part #3YL-26122-01-00
Наконечник (Ref #3)
3
Part #4JT-26246-00-00
Наконечник (Ref #3)
3
Part #4JT-26246-00-00
Наконечник (Ref #3)
3
Part #4JT-26246-00-00
Наконечник (Ref #3)
3
Part #4JT-26246-00-00
BOLT (Ref #4)
4
Part #91317-06025-00
BOLT (Ref #4)
4
Part #91317-06025-00
BOLT (Ref #4)
4
Part #91317-06025-00
BOLT (Ref #4)
4
Part #91317-06025-00
Grip (Ref #5)
5
Part #47X-26241-00-00
Grip (Right) (Ref #6)
6
Part #47X-26242-00-00
Труба дросселя (Ref #7)
7
Part #3YL-26243-00-00
RETAINER, MAGNETO BASE (Ref #8)
8
Part #3Y1-26249-00-00
Cap, Grip Upper (Ref #9)
9
Part #3YL-26281-01-00
Cap, Grip Upper (Ref #10)
10
Part #3YL-26282-00-00
BOLT (Ref #11)
11
Part #901-5705X-12-00
Cable, Throttle 1 (Ref #12)
12
Part #5KE-26311-00-00
Cable, Throttle 2 (Ref #13)
13
Part #5KE-26312-00-00
BOLT (Ref #14)
14
Part #90123-06007-00
Cable, clutch (Ref #15)
15
Part #5KE-26335-00-00
CLAMP (Ref #16)
16
Part #90464-16115-00
Пружина, блокирующая (Ref #17)
17
Part #5F6-26368-00-00
Screw, Pan Head (Ref #18)
18
Part #985-07050-08-00
Washer, Plate (Ref #19)
19
Part #92907-05100-00
