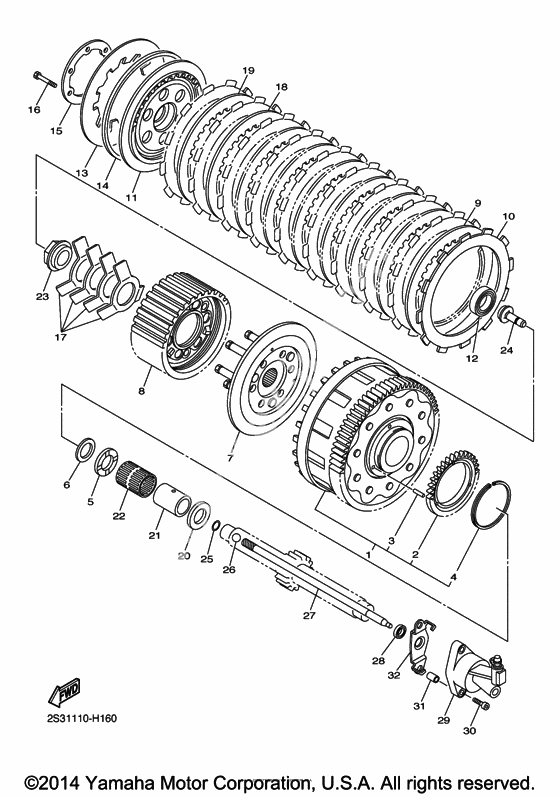

Сцепление
Сцепление
PRIMARY DRIVEN GEAR COMP. (Ref #1)
1
Part #2S3-16150-00-00
Шестерня ведущего насоса (Ref #2)
2
Part #2S3-13324-00-00
Pin, Dowel (Ref #3)
3
Part #93604-16092-00
Circlip (Ref #4)
4
Part #93440-57M01-00
Plate, Thrust 1 (Ref #5)
5
Part #4B1-16154-00-00
Шайба пружины (Ref #6)
6
Part #902-08250-02-00
Pressure Plate Assy 2 (Ref #7)
7
Part #2S3-16360-00-00
Clutch Boss Assy (Ref #8)
8
Part #2S3-16370-00-00
Диск сцепления (2.0 мм) (Ref #9)
9
Part #2H7-16325-00-00
プレート, トランサム (Ref #10)
10
Part #5YU-16321-00-00
Крышка сцепления. (Ref #11)
11
Part #2S3-16351-00-00
BEARING (Ref #12)
12
Part #933-06003-15-00
Spring, Pilot Adjusting (Ref #13)
13
Part #5YU-16334-00-00
Корпус пружины (Ref #14)
14
Part #36Y-16335-00-00
Plate, Pressure 3 (Ref #15)
15
Part #2S3-16353-00-00
Bolt, Hexagon (Ref #16)
16
Part #970-17060-25-00
Spring, Pilot Adjusting (Ref #17)
17
Part #2S3-16539-00-00
Диск сцепления (2.6 мм) (Ref #18)
18
Part #2H7-16324-00-00
Диск сцепления (1.6 мм) (Ref #19)
19
Part #47X-16324-00-00
Шайба (Ref #20)
20
Part #5VY-16164-00-00
COLLAR (Ref #21)
21
Part #90387-25026-00
BEARING (Ref #22)
22
Part #93310-33559-00
Nut, lock (Ref #23)
23
Part #2S3-16377-00-00
Толкатель (Ref #24)
24
Part #4KG-16356-00-00
Кольцо уплотнительное (Ref #25)
25
Part #93210-06632-00
Шарик (Ref #26)
26
Part #93511-32027-00
Rod, Push 2 (Ref #27)
27
Part #2S3-16357-00-00
Oil seal (Ref #28)
28
Part #93102-08008-00
Рукоятка нажима (Ref #29)
29
Part #2S3-16381-00-00
BOLT (Ref #30)
30
Part #90110-06138-00
Pin, Dowel (Ref #31)
31
Part #99530-08012-00
PLATE (Ref #32)
32
Part #2S3-15645-00-00
