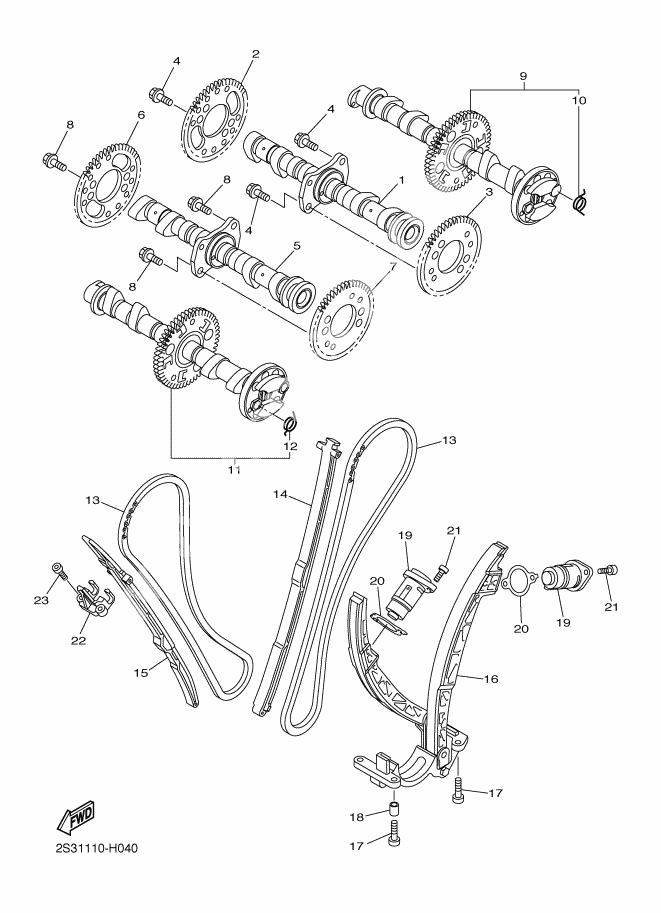

CAMSHAFT
CAMSHAFT
CAMSHAFT 1 (Ref #1)
1
Part #2S3-W1217-00
Sprocket, Cam Chain (Ref #2)
2
Part #2S3-12176-00
GEAR 3 (Ref #3)
3
Part #2S3-11554-00
CAMSHAFT ASSY 2 (Ref #9)
9
Part #2S3-12180-00
. SPRING, DECOMPRESSION (Ref #10)
10
Part #2S3-12287-00
CAMSHAFT ASSY 2 (Ref #11)
11
Part #2S3-12180-10
CHAIN (Ref #13)
13
Part #94591-49134
CHAIN (Ref #13)
13
Part #94591-49134
CHAIN (Ref #13)
13
Part #94591-49134
CHAIN (Ref #13)
13
Part #94591-49134
DAMPER, CHAIN 1 (Ref #14)
14
Part #2S3-12251-00
ダンパーチエーン 3 (Ref #15)
15
Part #2S3-12253-00
CHAIN DAMPER ASSY (Ref #16)
16
Part #2S3-12250-00
Bolt, Hexagon Socket Head (Ref #17)
17
Part #91312-06025
Bolt, Hexagon Socket Head (Ref #17)
17
Part #91312-06025
Bolt, Hexagon Socket Head (Ref #17)
17
Part #91312-06025
Bolt, Hexagon Socket Head (Ref #17)
17
Part #91312-06025
Pin, Dowel (Ref #18)
18
Part #99530-08012
Tensioner Assy, Cam Chain (Ref #19)
19
Part #2S3-12210-01
Tensioner Assy, Cam Chain (Ref #19)
19
Part #2S3-12210-01
Tensioner Assy, Cam Chain (Ref #19)
19
Part #2S3-12210-01
Tensioner Assy, Cam Chain (Ref #19)
19
Part #2S3-12210-01
Gasket, Tensioner Case (Ref #20)
20
Part #2S3-12213-00
Gasket, Tensioner Case (Ref #20)
20
Part #2S3-12213-00
Gasket, Tensioner Case (Ref #20)
20
Part #2S3-12213-00
Gasket, Tensioner Case (Ref #20)
20
Part #2S3-12213-00
Bolt, Hexagon Socket Head (Ref #21)
21
Part #90110-06193
Bolt, Hexagon Socket Head (Ref #21)
21
Part #90110-06193
Bolt, Hexagon Socket Head (Ref #21)
21
Part #90110-06193
Bolt, Hexagon Socket Head (Ref #21)
21
Part #90110-06193
GUIDE, STOPPER 1 (Ref #22)
22
Part #2S3-12231-00
Bolt, Hexagon Socket Head (Ref #23)
23
Part #90110-06174
