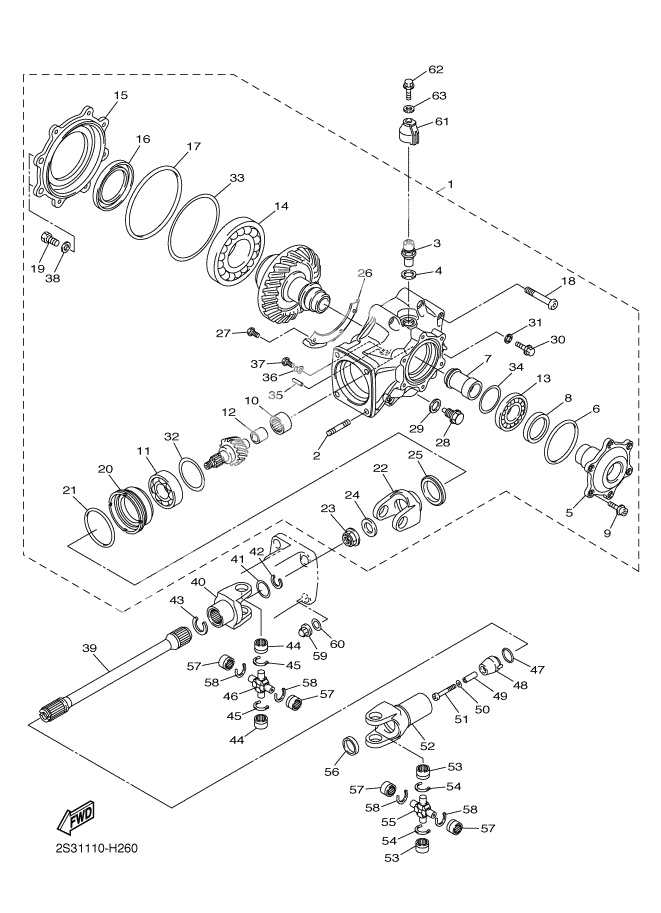

DRIVE SHAFT
DRIVE SHAFT
REAR AXLE GEAR CASE ASSY (Ref #1)
1
Part #2S3-46101-00
. BOLT, STUD (Ref #2)
2
Part #90116-10010
. BREATHER ASSY (Ref #3)
3
Part #2S3-17509-00
. GASKET (Ref #4)
4
Part #90430-22123
. PLATE (Ref #5)
5
Part #2S3-46296-10
O-RING (Ref #6)
6
Part #93210-92448
. COLLAR, GUIDE (Ref #7)
7
Part #2S3-46153-00
. OIL SEAL (Ref #8)
8
Part #93102-48014
. BOLT, HEXAGON SOCKET HEAD (Ref #9)
9
Part #90110-06333
. BEARING (Ref #10)
10
Part #93311-62592
. BEARING (Ref #11)
11
Part #93306-20724
. レ-ス,インナ (Ref #12)
12
Part #2S3-46122-00
. BEARING (Ref #13)
13
Part #93316-01003
. BEARING (Ref #14)
14
Part #93316-01901
. HOUSING, BEARING (Ref #15)
15
Part #2S3-46152-00
. OIL SEAL (Ref #16)
16
Part #93102-80008
. O-RING (Ref #17)
17
Part #93211-594A4
. BOLT, BUTTON HEAD (Ref #18)
18
Part #92014-08060
. BOLT, HEXAGON (Ref #19)
19
Part #90101-12037
. RETAINER, BEARING (Ref #20)
20
Part #2S3-46125-00
. O-RING (Ref #21)
21
Part #93210-86003
ヨ-ク,ジヨイント (Ref #22)
22
Part #2S3-17556-01
NUT (Ref #23)
23
Part #90179-20015
Washer, conical spring (Ref #24)
24
Part #90208-22004
. OIL SEAL (Ref #25)
25
Part #93102-45014
. PLATE, COVER (Ref #26)
26
Part #2S3-46114-00
SCREW (Ref #27)
27
Part #90149-06018
. PLUG, STRAIGHT SCREW (Ref #28)
28
Part #90340-14004
GASKET (Ref #29)
29
Part #214-11198-01
. BOLT, FLANGE (SMALL HEAD) (Ref #30)
30
Part #95024-06014
GASKET (Ref #31)
31
Part #90430-06166
. シム,スラスト (T0.2) (Ref #32)
32
Part #2S3-46119-60
. シム,スラスト (T0.6) (Ref #32)
32
Part #2S3-46119-50
. シム,スラスト (T0.5) (Ref #32)
32
Part #2S3-46119-40
. シム,スラスト (T0.45) (Ref #32)
32
Part #2S3-46119-30
. シム,スラスト (T0.25) (Ref #32)
32
Part #2S3-46119-70
. シム,スラスト (T0.4) (Ref #32)
32
Part #2S3-46119-20
. シム,スラスト (T0.3) (Ref #32)
32
Part #2S3-46119-10
. シム,スラスト (T0.15) (Ref #32)
32
Part #2S3-46119-00
. シム,リングギア (T0.15) (Ref #33)
33
Part #2S3-46117-10
. シム,リングギア (T0.1) (Ref #33)
33
Part #2S3-46117-00
. シム,リングギア (T0.5) (Ref #33)
33
Part #2S3-46117-80
. シム,リングギア (T0.45) (Ref #33)
33
Part #2S3-46117-70
. シム,リングギア (T0.4) (Ref #33)
33
Part #2S3-46117-60
. シム,リングギア (T0.25) (Ref #33)
33
Part #2S3-46117-30
. シム,リングギア (T0.2) (Ref #33)
33
Part #2S3-46117-20
. シム,リングギア (T0.35) (Ref #33)
33
Part #2S3-46117-50
. シム,リングギア (T0.3) (Ref #33)
33
Part #2S3-46117-40
. ワツシヤ,スラスト (T1.7) (Ref #34)
34
Part #2S3-46118-50
. ワツシヤ,スラスト (T1.9) (Ref #34)
34
Part #2S3-46118-70
. ワツシヤ,スラスト (T1.8) (Ref #34)
34
Part #2S3-46118-60
. ワツシヤ,スラスト (T1.6) (Ref #34)
34
Part #2S3-46118-40
. ワツシヤ,スラスト (T1.5) (Ref #34)
34
Part #2S3-46118-30
. ワツシヤ,スラスト (T1.4) (Ref #34)
34
Part #2S3-46118-20
. ワツシヤ,スラスト (T1.3) (Ref #34)
34
Part #2S3-46118-10
. ワツシヤ,スラスト (T1.2) (Ref #34)
34
Part #2S3-46118-00
. ワツシヤ,スラスト (T2.1) (Ref #34)
34
Part #2S3-46118-90
. ワツシヤ,スラスト (T2.0) (Ref #34)
34
Part #2S3-46118-80
. PIN, DOWEL (Ref #35)
35
Part #93605-23164
. HOLDER (Ref #36)
36
Part #2S3-46862-00
. WASHER, PLATE (Ref #38)
38
Part #90201-12033
SHAFT, DRIVE (Ref #39)
39
Part #2S3-46172-01
WASHER, PLATE (Ref #41)
41
Part #90201-29M01
Circlip (Ref #42)
42
Part #99009-28400
CIRCLIP (Ref #43)
43
Part #93440-32194
BEARING (Ref #44)
44
Part #93399-99965
BEARING (Ref #44)
44
Part #93399-99965
BEARING (Ref #44)
44
Part #93399-99965
BEARING (Ref #44)
44
Part #93399-99965
CIRCLIP (Ref #45)
45
Part #93440-23197
CIRCLIP (Ref #45)
45
Part #93440-23197
CIRCLIP (Ref #45)
45
Part #93440-23197
CIRCLIP (Ref #45)
45
Part #93440-23197
スパイダ (Ref #46)
46
Part #1YW-46187-10
O-RING (Ref #47)
47
Part #93210-28763
CAP (Ref #48)
48
Part #2S3-46231-00
COLLAR (Ref #49)
49
Part #90387-06235
. WASHER (Ref #50)
50
Part #92902-06200
Bolt, Hexagon Socket Head (Ref #51)
51
Part #90110-06316
ヨ-ク,ジヨイント (Ref #52)
52
Part #2S3-46186-00
PLUG (Ref #56)
56
Part #90331-37001
Nut, Crown (Ref #59)
59
Part #90176-10075
WASHER, PLATE (Ref #60)
60
Part #92990-10600
COVER 1 (Ref #61)
61
Part #2S3-4613F-00
Bolt, Flange (Ref #62)
62
Part #95024-06020
. GASKET (Ref #63)
63
Part #90430-06014
