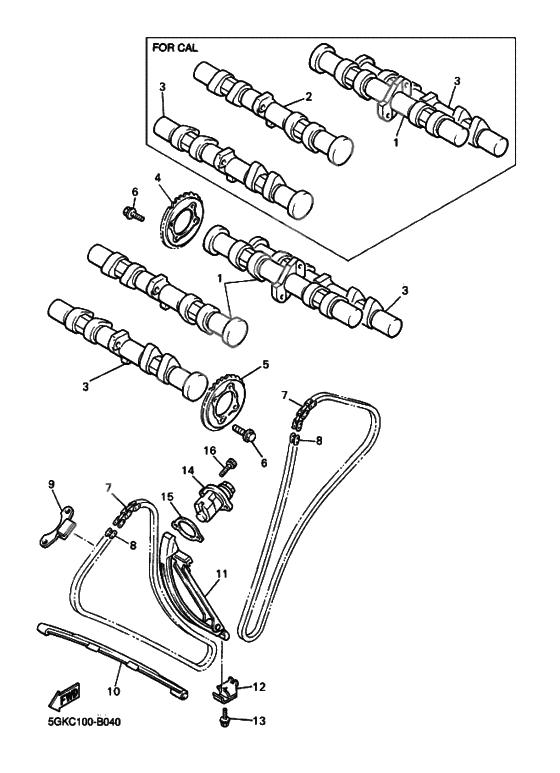

Camshaft & chain
Camshaft & chain
Camshaft 1 (Ref #1)
1
Part #1FK-12171-00-00
Camshaft 1 (Ref #1)
1
Part #1FK-12171-00-00
Camshaft 1 (Ref #1)
1
Part #1FK-12171-00-00
Camshaft 1 (Ref #1)
1
Part #1FK-12171-00-00
Звездочка, цепь кулака (Ref #4)
4
Part #26H-12176-02-00
Звездочка, цепь кулака (Ref #5)
5
Part #26H-12177-01-00
Болт (Ref #6)
6
Part #90105-07004-00
Болт (Ref #6)
6
Part #90105-07004-00
Болт (Ref #6)
6
Part #90105-07004-00
Болт (Ref #6)
6
Part #90105-07004-00
Цепь (Ref #7)
7
Part #9Y5-8A811-17-00
Цепь (Ref #7)
7
Part #9Y5-8A811-17-00
Цепь (Ref #7)
7
Part #9Y5-8A811-17-00
Цепь (Ref #7)
7
Part #9Y5-8A811-17-00
Pin, joint (Ref #8)
8
Part #4SV-11498-00-00
Pin, joint (Ref #8)
8
Part #4SV-11498-00-00
Pin, joint (Ref #8)
8
Part #4SV-11498-00-00
Pin, joint (Ref #8)
8
Part #4SV-11498-00-00
Направляющая стопора 2 (Ref #9)
9
Part #26H-12241-00-00
Дэмпфер цепи 1 (Ref #10)
10
Part #26H-12251-00-00
Дэмпфер цепи 2 (Ref #11)
11
Part #26H-12252-00-00
Plate, Guide Stopper 1 (Ref #12)
12
Part #26H-12233-00-00
BOLT (Ref #13)
13
Part #95817-08025-00
Натяжитель, цепь кулака (Ref #14)
14
Part #26H-12210-03-00
Washer, Needle Valve (Ref #15)
15
Part #3JP-12213-01-00
BOLT (Ref #16)
16
Part #91317-06020-00
