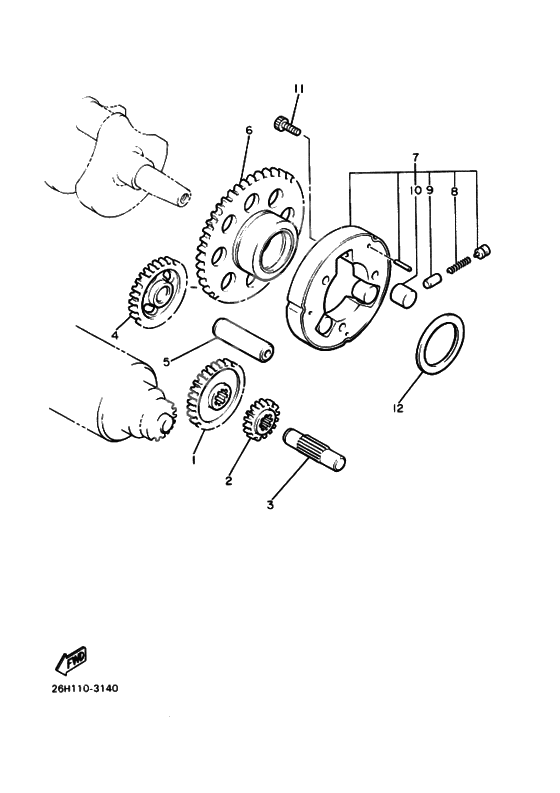

Starter clutch
Starter clutch
GEAR, DRIVEN (Ref #1)
1
Part #26H-15514-00-00
GEAR, DRIVEN (Ref #2)
2
Part #26H-15515-00-00
Shaft 2 (Ref #3)
3
Part #26H-15522-00-00
Gear, Idler 1 (27T) (Ref #4)
4
Part #26H-15512-00-00
Shaft 1 (Ref #5)
5
Part #26H-15521-00-00
Gear, Idler 2 (76T) (Ref #6)
6
Part #26H-15517-00-00
Starter Clutch Outer Assy (Ref #7)
7
Part #11H-15580-00-00
Пружина компрессора (Ref #8)
8
Part #90501-04623-00
Cap, Starter Clutch Spring (Ref #9)
9
Part #1J7-15583-01-00
Pin, Dowel (Ref #10)
10
Part #93615-12088-00
BOLT (Ref #11)
11
Part #91317-08014-00
Washer, Plate (Ref #12)
12
Part #90201-350F3-00
