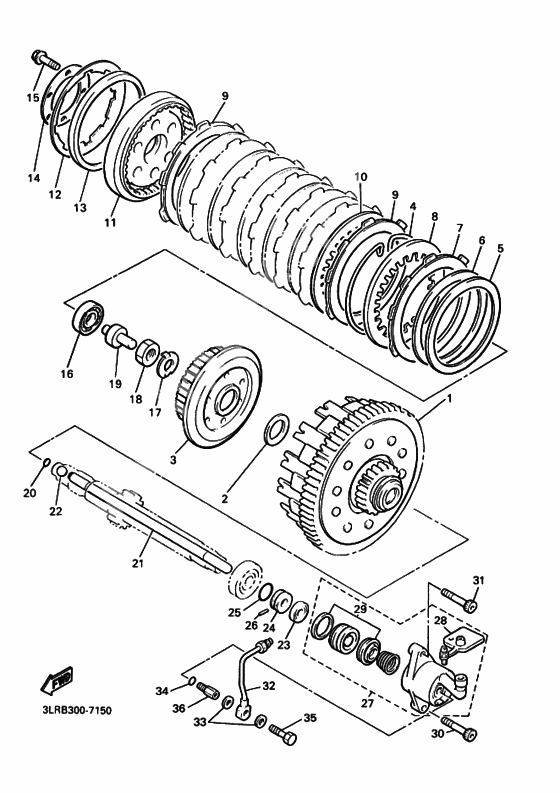

Сцепление
Сцепление
PRIMARY DRIVEN GEAR COMP. (Ref #1)
1
Part #26H-16150-10-00
Plate, Thrust 1 (Ref #2)
2
Part #26H-16154-00-00
Ботинок муфты (Ref #3)
3
Part #1FK-16371-00-00
Ring Set (Ref #4)
4
Part #26H-16385-00-00
Plate, seat (Ref #5)
5
Part #26H-16384-00-00
Пружина муфты (Ref #6)
6
Part #1FK-16383-00-00
プレート, トランサム (Ref #7)
7
Part #26H-16321-01-00
Plate, Clutch 1 (Ref #8)
8
Part #26H-16324-00-00
Plate, Friction 3 (Ref #9)
9
Part #26H-16307-01-00
Plate, Friction 3 (Ref #9)
9
Part #26H-16307-01-00
Plate, Friction 3 (Ref #9)
9
Part #26H-16307-01-00
Plate, Friction 3 (Ref #9)
9
Part #26H-16307-01-00
Крышка сцепления. (Ref #11)
11
Part #1FK-16351-00-00
Spring, Pilot Adjusting (Ref #12)
12
Part #1FK-16334-00-00
Обойма пружины (Ref #13)
13
Part #1FK-16335-00-00
Plate, Pressure 2 (Ref #14)
14
Part #1FK-16352-00-00
Bolt, Hexagon (Ref #15)
15
Part #970-17060-25-00
BEARING (Ref #16)
16
Part #933-06003-15-00
Шайба контровочная (Ref #17)
17
Part #90215-25218-00
Гайка (Ref #18)
18
Part #90170-20323-00
Rod, Push 1 (Ref #19)
19
Part #36Y-16356-00-00
Кольцо уплотнительное (Ref #20)
20
Part #93210-06632-00
Rod, Push 2 (Ref #21)
21
Part #4NK-16357-00-00
Шарик (Ref #22)
22
Part #93511-32027-00
Сальник (Ref #23)
23
Part #93109-08061-00
ROD, MAGNETO CONTROL (Ref #24)
24
Part #26H-Y1639-00-00
Washer, Needle Valve (Ref #25)
25
Part #932-10183-22-00
Pin, Dowel (Ref #26)
26
Part #93603-07073-00
Рукоятка нажима (Ref #27)
27
Part #1FK-16381-11-00
Bleed Screw Kit (Ref #28)
28
Part #1NL-W0048-00-00
Ремкомплект цилиндра (Ref #29)
29
Part #26H-W0098-00-00
Bolt, Hexagon (Ref #31)
31
Part #90110-06035-00
Pipe, Clutch 1 (Ref #32)
32
Part #1FK-1638A-00-00
Washer, Needle Valve (Ref #33)
33
Part #90430-10148-00
BOLT (Ref #35)
35
Part #90401-10084-00
COLLAR (Ref #36)
36
Part #1FK-16375-00-00
-
2426H-16399-00-00
ROD, MAGNETO CONTROL
1Replaced by 26H-Y1639-00-00 Доступно: Нет в наличии
