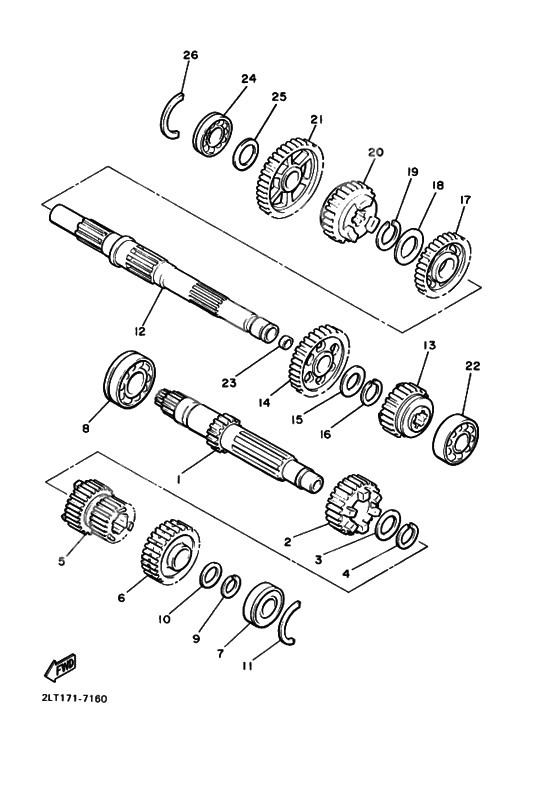

Трансмиссия
Трансмиссия
Axle, Main (17T) (Ref #1)
1
Part #1FK-17411-00-00
Шестерня, 4-ая (Ref #2)
2
Part #1FK-17141-00-00
Washer, Plate (Ref #3)
3
Part #90209-25196-00
Кольцо стопорное (Ref #4)
4
Part #93440-28062-00
Шестерня, 2-ая (Ref #5)
5
Part #1FK-17121-01-00
Шестерня, 5-ая (Ref #6)
6
Part #1FK-17151-01-00
BEARING (Ref #7)
7
Part #93306-30430-00
BEARING (Ref #8)
8
Part #93306-36401-00
Circlip (Ref #9)
9
Part #93410-23056-00
Washer, Plate (Ref #10)
10
Part #90201-232K5-00
Circlip (Ref #11)
11
Part #93440-52118-00
Привод (Ref #12)
12
Part #4NK-17402-00-00
Шестерня, 5-ого колеса (Ref #13)
13
Part #1FK-17251-01-00
Шестерня, 2-ого колеса) (Ref #14)
14
Part #1FK-17221-01-00
Washer, Plate (Ref #15)
15
Part #90209-32231-00
Circlip (Ref #16)
16
Part #93440-34025-00
Шестерня, 3-го колеса (Ref #17)
17
Part #26H-17231-01-00
Washer, Plate (Ref #18)
18
Part #90209-27192-00
Circlip (Ref #19)
19
Part #93440-30077-00
Шестерня, 4-го колеса (Ref #20)
20
Part #1FK-17241-00-00
Шестерня, первого колеса (Ref #21)
21
Part #1FK-17211-00-00
BEARING (Ref #22)
22
Part #93306-20645-00
PLUG (Ref #23)
23
Part #90331-15039-00
BEARING (Ref #24)
24
Part #93306-20555-00
Washer, Plate (Ref #25)
25
Part #90201-256K7-00
Washer, Plate (Ref #25)
25
Part #90201-256K5-00
Шайба (Ref #25)
25
Part #90201-256K6-00
