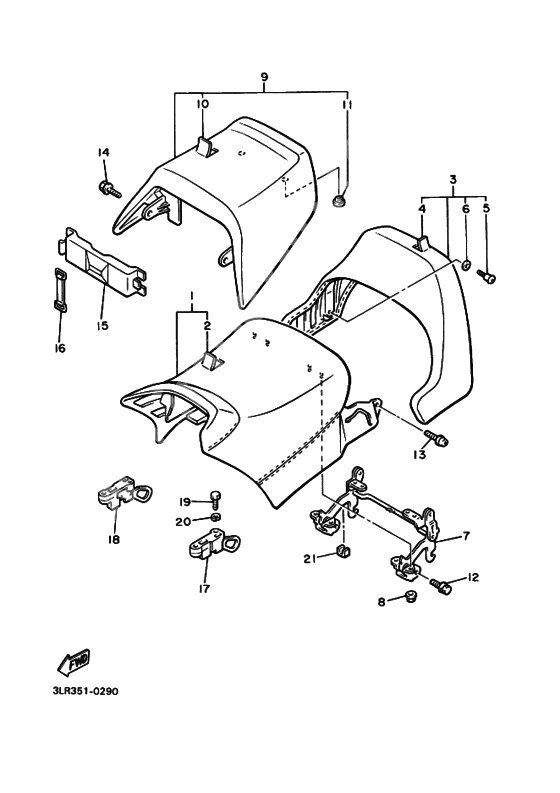

Seat
Seat
Seat comp (Ref #1)
1
Part #5GK-24771-00-00
PLATE, SEAL DAMPER (Ref #2)
2
Part #5GK-2470F-00-00
Seat Back Assy (Ref #3)
3
Part #5GK-24790-00-00
PLATE, SEAL DAMPER (Ref #4)
4
Part #5GK-2470F-10-00
Pin, guide (Ref #5)
5
Part #1FK-2476F-00-00
Washer, Plate (Ref #6)
6
Part #1FK-24736-00-00
Hinge Ass'y (Ref #7)
7
Part #1FK-24772-00-00
Nut, flange (Ref #8)
8
Part #95707-06500-00
Tandem Seat Assy (Ref #9)
9
Part #5GK-24750-00-00
PLATE, SEAL DAMPER (Ref #10)
10
Part #5GK-2470F-20-00
Pad, Seat (Ref #11)
11
Part #22W-24741-00-00
BOLT (Ref #12)
12
Part #95817-06012-00
Screw, With Washer (Ref #13)
13
Part #901-19062-42-00
Screw, Pan Head (Ref #13)
13
Part #98507-06016-00
. リツド (Ref #15)
15
Part #1FK-2473T-00-00
Комплект (Ref #16)
16
Part #5H9-21376-00-00
Seat Lever Assy (Ref #17)
17
Part #1FK-24760-00-00
Защелка сиденья (Ref #18)
18
Part #1FK-24780-00-00
BOLT (Ref #19)
19
Part #97017-06012-00
Washer, Plate (Ref #20)
20
Part #92907-06600-00
Демпфер (Ref #21)
21
Part #3UF-24737-00-00
-
1390119-06044-00
Screw, With Washer
0Replaced by 901-19062-42-00 Доступно: Нет в наличии
-
1390159-06033-00
Screw, Pan Head With
2Replaced by 98507-06016-00 Доступно: Нет в наличии
-
1390159-06060-00
Screw, Pan Head With
0Replaced by 90119-06044-00 Доступно: Нет в наличии
