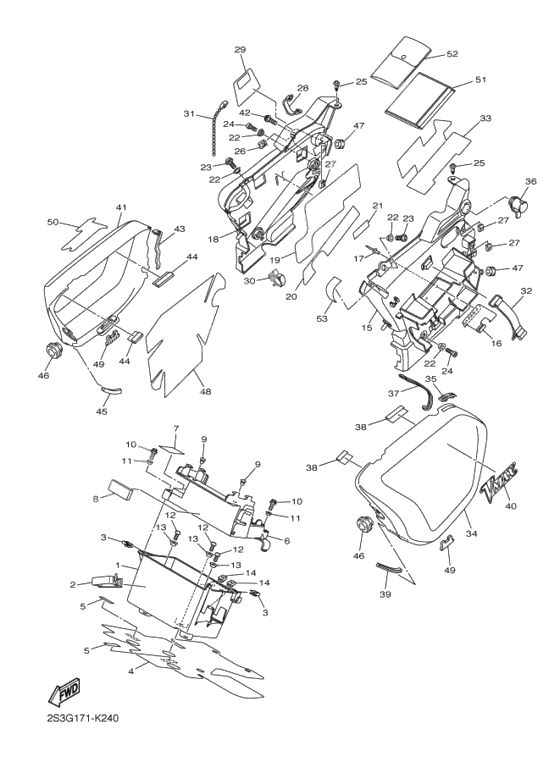

Side cover
Side cover
サイドカバーアセンブリ WG (Ref #1)
1
Part #2S3-21711-00-P0
Дэмпфер соединения (Ref #2)
2
Part #2S3-21778-00-00
Амортизатор (Ref #3)
3
Part #5C7-21649-00-00
Bolt,hex. Socket Button (Ref #4)
4
Part #90111-06015-00
Panel, Switch (Ref #6)
6
Part #2S3-2172H-00-00
Дэмпфер соединения (Ref #7)
7
Part #2S3-2177M-00-00
Демпфер (Ref #8)
8
Part #1HX-27415-00-00
Grill, Air Intake 1 (Ref #9)
9
Part #2S3-2837N-00-00
Grill, Air Intake 2 (Ref #10)
10
Part #2S3-2837R-00-00
Болт (Ref #11)
11
Part #92014-05012-00
Nut, Square (Ref #12)
12
Part #90173-05006-00
Guide (Ref #13)
13
Part #1FK-2171H-00-00
DUCT, intake (Ref #14)
14
Part #2S3-2172U-00-00
Болт (Ref #15)
15
Part #92014-05008-00
Болт (Ref #16)
16
Part #90111-06009-00
Panel, Inner 1 (Ref #17)
17
Part #2S3-2836K-00-00
Валик (Ref #19)
19
Part #2S3-2173N-00-00
Nut, Spring (Ref #20)
20
Part #90183-06008-00
Mole, Side Cover 1 (Ref #21)
21
Part #2S3-2171L-00-00
Маркировка на вилке (Ref #22)
22
Part #2S3-2175B-01-00
サイドカバーアセンブリ WG (Ref #23)
23
Part #2S3-21721-00-P0
Дэмпфер соединения (Ref #24)
24
Part #2S3-21779-00-00
Panel, Switch (Ref #27)
27
Part #2S3-2172J-00-00
DUCT, intake (Ref #35)
35
Part #2S3-2172V-00-00
Panel, Inner 2 (Ref #38)
38
Part #2S3-2836L-00-00
Mole, Side Cover 2 (Ref #42)
42
Part #2S3-2171M-00-00
Маркировка на вилке (Ref #43)
43
Part #2S3-2176B-01-00
COVER, TOP (Ref #44)
44
Part #2S3-2171A-00-P6
Reinf (Ref #45)
45
Part #2S3-2175G-00-00
Уплотнение (Ref #46)
46
Part #2S3-28347-00-00
Амортизатор (Ref #47)
47
Part #2AL-84553-00-00
Амортизатор (Ref #48)
48
Part #2S3-28371-00-00
Амортизатор (Ref #49)
49
Part #2S3-2174X-00-00
Амортизатор (Ref #50)
50
Part #2S3-2174Y-00-00
Mole, Side Cover 3 (Ref #51)
51
Part #2S3-2171N-00-00
Mole, Side Cover 4 (Ref #52)
52
Part #2S3-2171R-00-00
Mole, Side Cover 5 (Ref #53)
53
Part #2S3-2171T-00-00
Mole, Side Cover 6 (Ref #54)
54
Part #2S3-2171U-00-00
Bolt, Hex. Socket Button (Ref #56)
56
Part #901-11061-38-00
Болт (Ref #57)
57
Part #92017-06020-00
Болт (Ref #57)
57
Part #92017-06020-00
Болт (Ref #57)
57
Part #92017-06020-00
Болт (Ref #57)
57
Part #92017-06020-00
Nut, flange (Ref #58)
58
Part #90179-06524-00
Nut, flange (Ref #58)
58
Part #90179-06524-00
Nut, flange (Ref #58)
58
Part #90179-06524-00
Nut, flange (Ref #58)
58
Part #90179-06524-00
BOLT (Ref #59)
59
Part #90111-06132-00
BOLT (Ref #59)
59
Part #90111-06132-00
BOLT (Ref #59)
59
Part #90111-06132-00
BOLT (Ref #59)
59
Part #90111-06132-00
Bracket 3 (Ref #60)
60
Part #2S3-2172M-00-00
Bracket 4 (Ref #61)
61
Part #2S3-2172N-00-00
BOLT (Ref #62)
62
Part #90111-06041-00
Cover, meter (Ref #63)
63
Part #2S3-83559-00-00
Держатель проводки (Ref #64)
64
Part #2S3-28345-00-00
Держатель проводки (Ref #65)
65
Part #2S3-28346-00-00
BOLT (Ref #66)
66
Part #92014-06010-00
Наклейка предупредительная (Ref #67)
67
Part #5GK-2118K-00-00
Наклейка предупредительная (Ref #68)
68
Part #5GK-2118K-10-00
