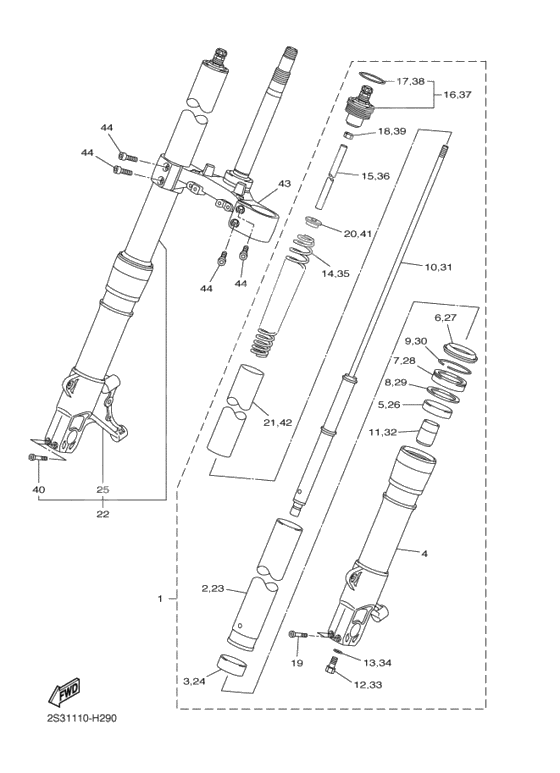

Front
Front
Front Fork Assy (L.h) (Ref #1)
1
Part #2S3-23102-00-00
Внутренняя трубка (Ref #2)
2
Part #2S3-23110-01-00
Metal, Slide 2 (Ref #3)
3
Part #2S3-23135-00-00
. OUTER TUBE COMP. (Ref #4)
4
Part #2S3-23106-00-00
Металическая вставка 1 (Ref #5)
5
Part #2S3-23125-00-00
PLATE, SEAL DAMPER (Ref #6)
6
Part #2S3-23144-00-00
Oil seal (Ref #7)
7
Part #2S3-23145-00-00
Spring, Pilot Adjusting (Ref #8)
8
Part #2S3-23115-00-00
RETAINER, MAGNETO BASE (Ref #9)
9
Part #2S3-23156-00-00
Цилиндр, передняя вилка (Ref #10)
10
Part #2S3-23170-00-00
Spindle, Taper (Ref #11)
11
Part #2S3-23173-00-00
Болт специальный (Ref #12)
12
Part #2S3-23394-00-00
Шайба-прокладка (Ref #13)
13
Part #90430-10171-00
Пружина передней вилки (Ref #14)
14
Part #2S3-23141-00-00
SPACER (Ref #15)
15
Part #2S3-23118-00-00
Болт стакана (Ref #16)
16
Part #2S3-23111-00-00
Washer, Needle Valve (Ref #17)
17
Part #CS4-43862-40-00
Гайка (Ref #18)
18
Part #95314-10600-00
Болт (Ref #19)
19
Part #91314-08045-00
Уплотнение пружины верх. (Ref #20)
20
Part #5YU-23142-00-00
Reinf. Comp (Ref #21)
21
Part #2S3-23104-00-00
Front Fork Assy (R.h) (Ref #22)
22
Part #2S3-23103-00-00
. OUTER TUBE COMP. (Ref #25)
25
Part #2S3-23107-00-00
UNDER BRACKET COMP. (Ref #43)
43
Part #2S3-23340-00-00
